CYCPLUS AS2 الٽرا اليڪٽرڪ ميني پمپ يوزر مينوئل

تعارف

This manual provides detailed instructions for the safe and efficient operation of your CYCPLUS AS2 Ultra Electric Mini Pump. Please read this manual thoroughly before first use and retain it for future reference.

پيڪيج مواد

پڪ ڪريو ته هيٺ ڏنل سڀئي شيون توهان جي پيڪيج ۾ شامل آهن:

• Tire Inflator ×1
• Flexible Hose ×1
• پريسٽا والو اڊاپٽر × 1
• Ball Needle ×1
• Silicone Case ×1
• Waterproof Storage Bag ×1
• USB چارجنگ ڪيبل × 1
• يوزر مينوئل ×1

شڪل 1: All components included in the CYCPLUS AS2 Ultra package.

پيداوار جون خاصيتون

• الٽرا پورٽيبل ڊيزائن: Weighing only 3.06 oz (87g) and measuring 2.55 x 1.10 x 1.87 inches, this pump is designed for single-handed use and easy transport.

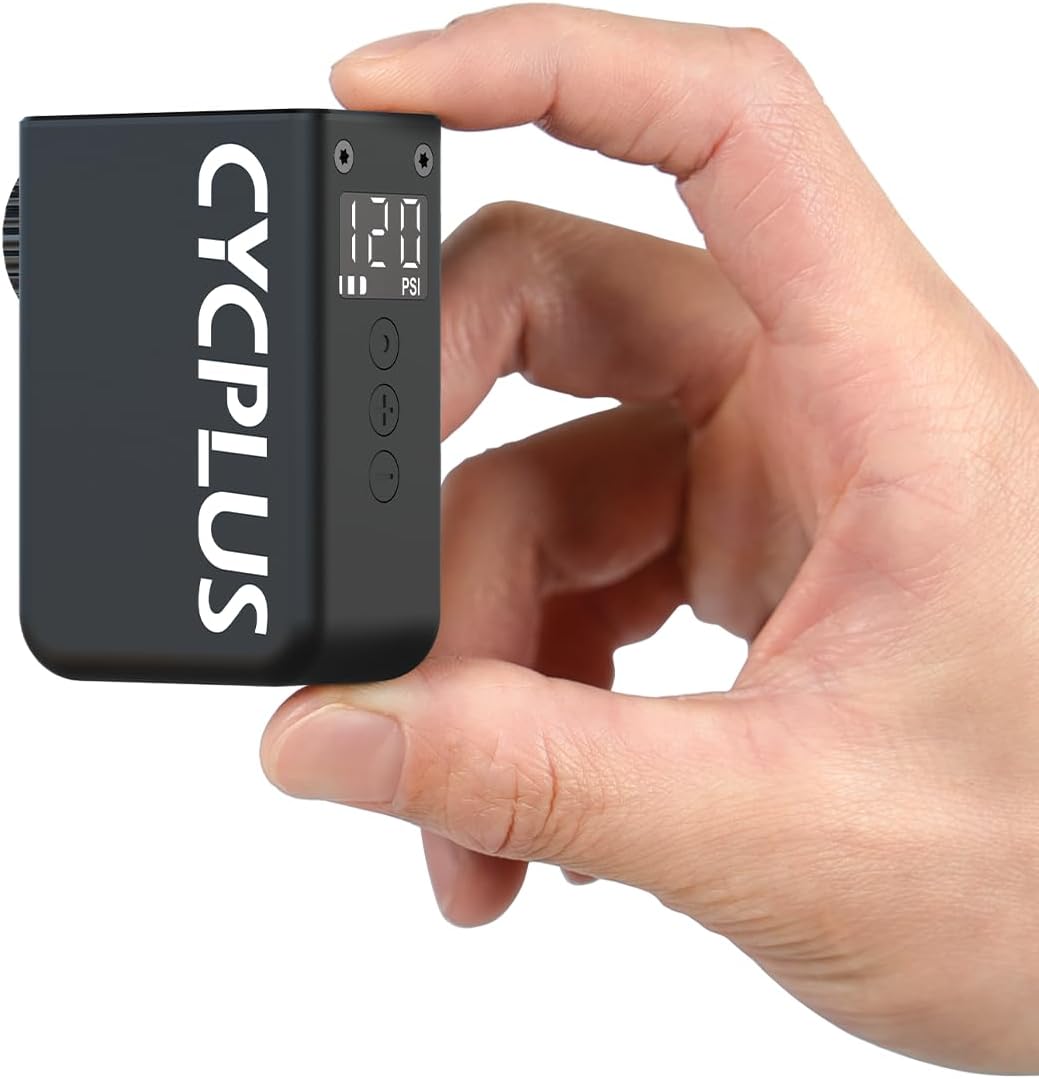

  شڪل 2: The compact size of the AS2 Ultra, easily held in one hand.


  شڪل 3: Size and weight comparison demonstrating the AS2 Ultra's portability.

• طاقتور افراط زر: Achieves a maximum air pressure of 120 PSI. Can refill a 700 x 25C tire from 0-80 PSI in approximately 52 seconds, and inflate a road bike tire from 0-120 PSI in about 120 seconds. Ideal for E-Bikes, Mountain Bikes, City Bikes, and Road Bikes.


  شڪل 4: Inflation performance metrics for various tire types.

• Auto Shut-off with Digital Gauge: Features an LED screen displaying preset and real-time pressure readings with an accuracy of ±1 PSI. The pump automatically stops once the target pressure is reached.


  شڪل 5: The digital pressure gauge and display interface.
• Fast Charging & Battery Life: Fully charges in just 25 minutes. A single full charge can inflate at least two 700*25C tires from 0 to 110 PSI.


  شڪل 6: The pump features Type-C fast charging.

• ٻٽي والو مطابقت: Supports both Schrader and Presta valves with a 2-in-1 design for convenience. Includes an extra air hose for difficult angles.


  شڪل 7: The extended hose kit for versatile use.

سيٽ اپ ۽ اسيمبلي

پمپ کي چارج ڪرڻ

Before first use, fully charge the pump using the provided USB charging cable. Connect the Type-C end of the cable to the pump's charging port and the other end to a compatible USB power source. The display will indicate charging status. A full charge takes approximately 25 minutes.

Attaching the Air Hose and Adapters

The pump supports both Schrader and Presta valves.

1. شريڊر والوز لاءِ: Directly attach the flexible air hose to the pump's inflation port. Screw the other end of the hose onto the Schrader valve stem of your tire.

   وڊيو 1: Demonstrates how to attach the air hose for Schrader valves and inflate a tire.

2. پريسٽا والوز لاءِ: First, screw the Presta valve adapter onto the flexible air hose. Then, attach the assembled hose and adapter to the pump's inflation port. Finally, screw the Presta valve adapter onto the Presta valve stem of your tire.

   وڊيو 2: Illustrates the process of attaching the Presta valve adapter and inflating a tire.
3. For Balls: Attach the ball needle to the flexible air hose. Then, attach the assembled hose and needle to the pump's inflation port. Insert the needle into the ball's inflation port.

اهم نوٽ: When inflating tubeless tires, it is recommended to use the extended hose to prevent the valve from melting due to heat generated during inflation.

آپريٽنگ هدايتون

1. پاور آن / آف: Press and hold the power button (usually the central button) to turn the pump on or off.
2. دٻاء کي ترتيب ڏيو: Once powered on, the display will show the current pressure. Use the "+" and "-" buttons to adjust the desired target pressure.
3. سوئچ پريشر يونٽ: PSI ۽ BAR يونٽن جي وچ ۾ سوئچ ڪرڻ لاءِ "+" ۽ "-" بٽڻن کي هڪ ئي وقت دٻايو.
4. افراط زر شروع ڪريو/روڪ ڪريو: Double-press the power button to start the inflation. The pump will automatically stop once the preset target pressure is reached.

سار سنڀال

• Keep the pump clean and free from dust and debris.
• پمپ کي ٿڌي، سڪل جاءِ تي محفوظ ڪريو سڌو سج جي روشني ۽ انتهائي گرمي پد کان پري.
• پڪ ڪريو ته چارجنگ پورٽ صاف ۽ سڪل آهي چارج ڪرڻ کان اڳ.
• Do not disassemble the pump. Contact customer support for repairs.
• The silicone case provides protection against splashes and minor impacts. Use it to prolong the pump's lifespan.

مشڪلاتون

پمپ نه ٿو ڦري:

Ensure the battery is charged. Connect to a power source and try again. If still unresponsive, contact customer support.

Pump does not inflate or inflates slowly:

Check that the air hose and valve adapter are securely attached and there are no leaks. Ensure the valve stem is fully open (for Presta valves). Verify the target pressure is set correctly and is higher than the current tire pressure.

غلط دٻاء پڙهڻ:

Ensure the hose is properly connected to the valve. The pump has an accuracy of ±1 PSI. If discrepancies persist, contact customer support.

Pump overheats:

Prolonged use, especially when inflating multiple tires or to high pressures, can cause the pump to heat up. Allow it to cool down before continuing. Use the silicone case for thermal insulation.

وضاحتون

وارنٽي ۽ سپورٽ

The CYCPLUS AS2 Ultra Electric Mini Pump comes with a ٻن سالن جي وارنٽي خريداري جي تاريخ کان. هي وارنٽي عام استعمال هيٺ پيداوار جي خرابين ۽ خرابين کي ڍڪيندي آهي.

For warranty claims, technical support, or any questions regarding your product, please contact CYCPLUS customer service through their official webسائيٽ يا پرچون ڪندڙ جتي توهان پراڊڪٽ خريد ڪيو.

رابطي جي ڄاڻ:

• جو دورو ڪريو Amazon تي CYCPLUS اسٽور وڌيڪ معلومات ۽ حمايت لاء.
