SPYMINNPOO S966 Electric Bike LCD Display User Manual

1. تعارف

Thank you for choosing the SPYMINNPOO S966 Electric Bike LCD Display. This device serves as a comprehensive cycling computer for electric bikes, providing essential ride data, smart meter functions, and secure NFC-based power control. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and longevity of your display.

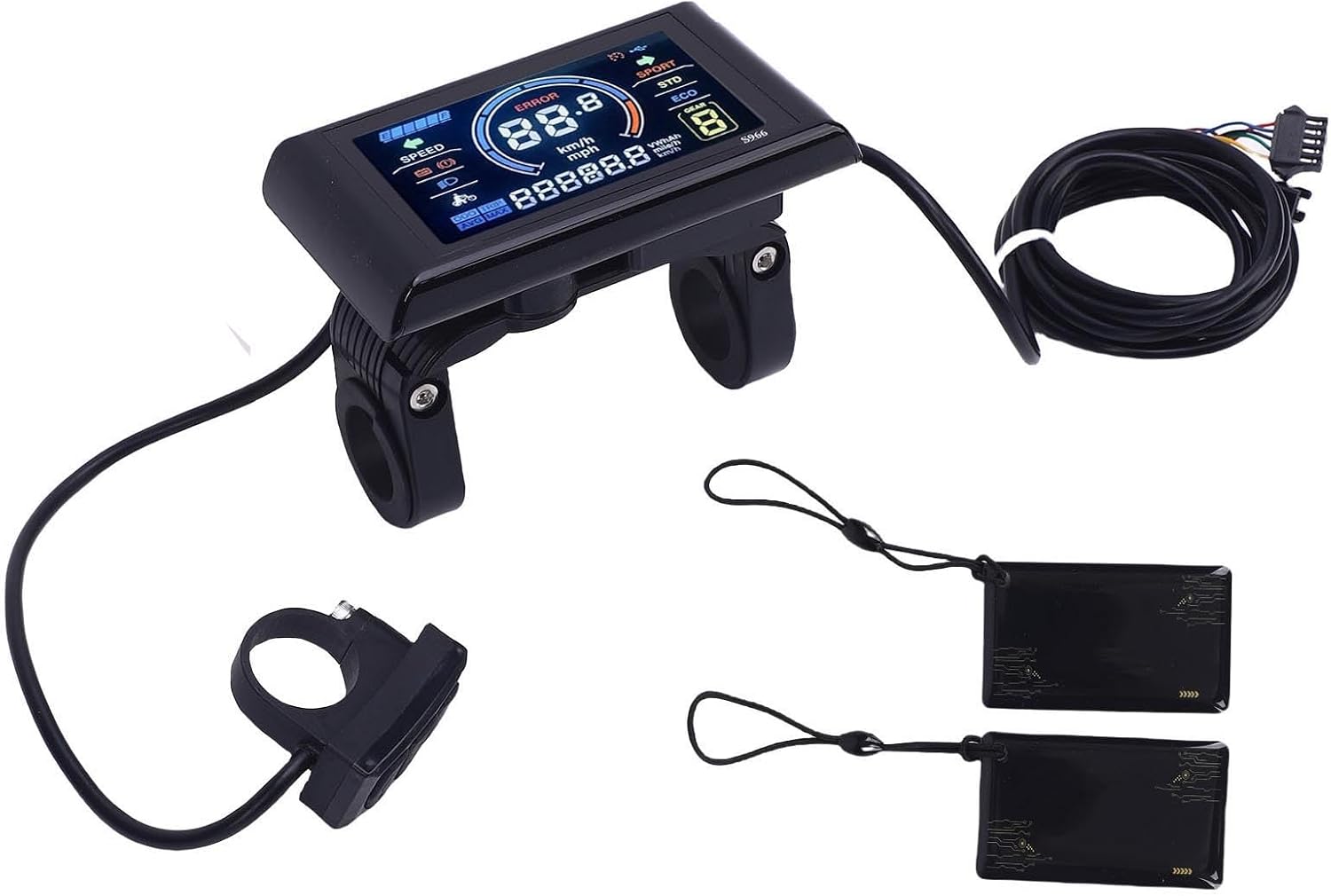

تصوير 1.1: مٿيview of the SPYMINNPOO S966 Electric Bike LCD Display package contents. Shown are the main display unit, a separate control button unit, the connecting wiring harness, and two NFC cards.

2. پيڪيج مواد

مھرباني ڪري تصديق ڪريو ته سڀ شيون توھان جي پيڪيج ۾ موجود آھن:

• 1 x SPYMINNPOO S966 Electric Bike LCD Display Unit
• 1 x Control Button Unit (integrated with wiring)
• 1 x Wiring Harness (pre-attached to display and control unit)
• 2 x NFC Cards
• 1 x استعمال ڪندڙ دستياب (هي دستاويز)

3. وضاحتون

Image 3.1: The S966 display unit with key dimensions indicated: 100mm (3.93in) length, 61.5mm (2.42in) height, and 22.2mm (0.87in) handlebar clamp قطر.

4. حفاظت جي ڄاڻ

Please read and understand all safety instructions before installing and operating the display. Failure to do so may result in damage to the product or personal injury.

• پيشه ورانه تنصيب جي سفارش ڪئي وئي آهي: If you are unsure about the installation process, seek assistance from a qualified bicycle technician.
• Power Off Before Connection: Always ensure the e-bike's power is turned off before connecting or disconnecting any components.
• صحيح جلدtage: Verify that your e-bike's battery voltage (24V, 36V, or 48V) matches the display's compatibility.
• محفوظ لڳائڻ: Ensure the display and control unit are securely mounted to the handlebar and do not obstruct steering or braking.
• وائرنگ سالميت: Check all wiring connections for proper seating and ensure no wires are pinched or exposed.
• پاڻي جي مزاحمت: While the display is designed to be waterproof, avoid submerging it in water or using high-pressure washers directly on the unit.

5. سيٽ اپ

5.1. تنصيب

1. چڙهڻ جو هنڌ چونڊيو: Select a suitable position on your e-bike's handlebar for the display unit and the control button unit. Ensure they are easily accessible and do not interfere with other controls.
2. ڊسپلي کي لڳايو: Loosen the screws on the display's handlebar clamp. Position the display on the handlebar and tighten the screws until it is secure. Do not overtighten.
3. ڪنٽرول يونٽ لڳايو: Similarly, mount the control button unit on the handlebar in a comfortable position for your thumb.

Image 5.1: The S966 display and control unit installed on an electric bicycle handlebar, with the bike parked in the background.

5.2. وائرنگ ڪنيڪشن

The S966 display connects to your e-bike's controller via a multi-pin SM connector. It is crucial that your controller supports the same communication protocol as the S966 display.

1. Identify Controller Port: Locate the corresponding display port on your e-bike's controller.
2. وائرنگ هارنس سان ڳنڍيو: Carefully align the pins of the display's wiring harness connector with the controller's port. Push firmly until the connector is fully seated and secured.
3. ڪيبل جو انتظام: Route the cables neatly along the bike frame, securing them with cable ties to prevent snagging or damage.

6. آپريٽنگ هدايتون

6.1. Power On/Off with NFC Card

The S966 display utilizes NFC technology for secure power activation. To turn the display on or off:

• پاور آن ڪرڻ: Hold one of the provided NFC cards near the designated NFC sensing area on the display. The display will power on, and you may hear a 'click' sound indicating successful card sensing.
• پاور آف ڪرڻ: Repeat the process by holding the NFC card near the sensing area. The display will power off.

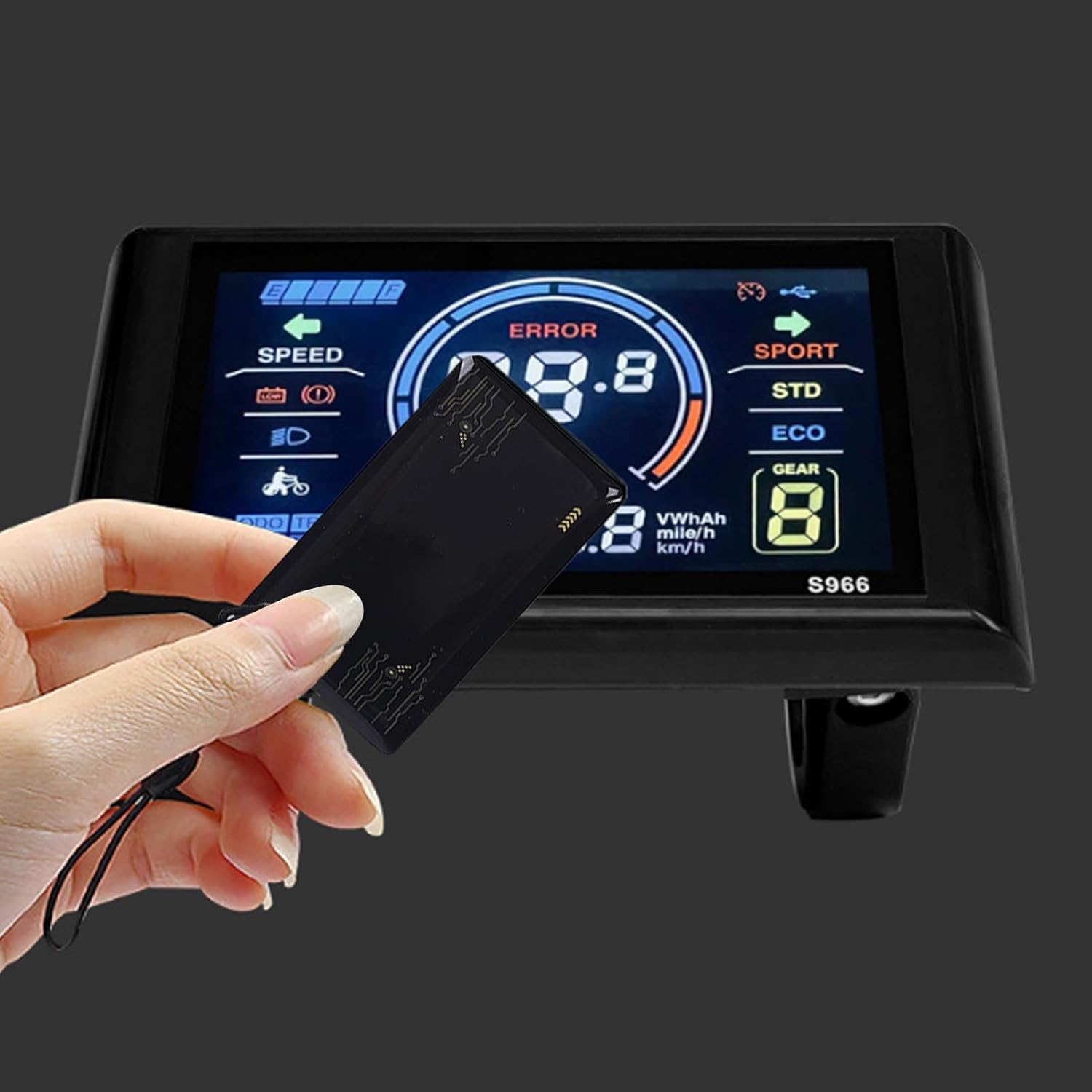

Image 6.1: A hand demonstrating the use of an NFC card to interact with the S966 display, likely for power activation.

6.2. مٿي ڏيکاريوview

The high-resolution LCD screen provides clear and comprehensive information at a glance.

تصوير 6.2: هڪ تفصيلي view of the S966 display screen, showing various indicators such as speed, battery level, error messages, and riding modes.

Key indicators typically include:

• رفتار: موجوده سواري جي رفتار (ڪلوميٽر/ڪلاڪ يا ميل في ڪلاڪ).
• بيٽري جي سطح: باقي بيٽري چارج جي گرافڪ نمائندگي.
• غلطي جو اشارو: Displays error codes if a system fault occurs.
• Assistance Level/Gear: Current pedal assist level (e.g., ECO, STD, SPORT, or numerical gear).
• اوڊوميٽر (ODO): ڪُل سفر ڪيل فاصلو.
• Trip Distance (TRIP): Distance traveled during the current ride.
• Average Speed (AVG): Average speed of the current ride.
• Maximum Speed (MAX): Maximum speed achieved during the current ride.
• هيڊ لائيٽ اشارو: Shows if the e-bike's headlights are on.

6.3. بٽڻ افعال

The separate control unit typically features three buttons for navigating the display and adjusting settings:

Image 6.3: The S966 display connected to its wired control unit, which features three buttons for operation.

• مٿي بٽڻ (▲): Typically used to increase pedal assist level, scroll up through menus, or increase values in settings.
• هيٺ بٽڻ (▼): Typically used to decrease pedal assist level, scroll down through menus, or decrease values in settings.
• Mode/Menu Button (M): Used to cycle through display information (e.g., ODO, TRIP, AVG, MAX), enter/exit settings menus, or confirm selections. A long press often activates specific functions or enters the settings menu.

6.4. پيرا ميٽر سيٽنگون

To access and adjust various parameters (e.g., wheel size, speed unit, backlight brightness), typically:

1. سيٽنگون داخل ڪريو: With the display on, press and hold the 'M' button for a few seconds until the settings menu appears.
2. نيويگيٽ: Use the Up (▲) and Down (▼) buttons to scroll through the available settings options.
3. Select/Adjust: Press the 'M' button briefly to select a setting. Use the Up (▲) and Down (▼) buttons to adjust the value.
4. Confirm/Exit: Press the 'M' button again to confirm the adjustment. To exit the settings menu, typically a long press of the 'M' button or navigating to an 'Exit' option is required.

7. سار سنڀال

Proper maintenance ensures the longevity and reliability of your S966 display.

• صفائي: ڊسپلي اسڪرين ۽ باڊي کي نرم، ڊي سان صاف ڪريوamp ڪپڙو. گھڙڻ وارا صاف ڪندڙ، محلول، يا سخت ڪيميڪل استعمال ڪرڻ کان پاسو ڪريو، ڇاڪاڻ ته اهي اسڪرين کي نقصان پهچائي سگهن ٿا ياasing.
• پاڻي جي نمائش: Although designed to be waterproof, prolonged exposure to heavy rain or direct high-pressure water jets should be avoided. Ensure the connector is dry before powering on after wet conditions.
• اسٽوريج: When not in use for extended periods, store the e-bike and display in a dry, cool place away from direct sunlight.
• ڪيبل جي چڪاس: Periodically check all cables and connectors for signs of wear, fraying, or damage. Ensure connections remain secure.

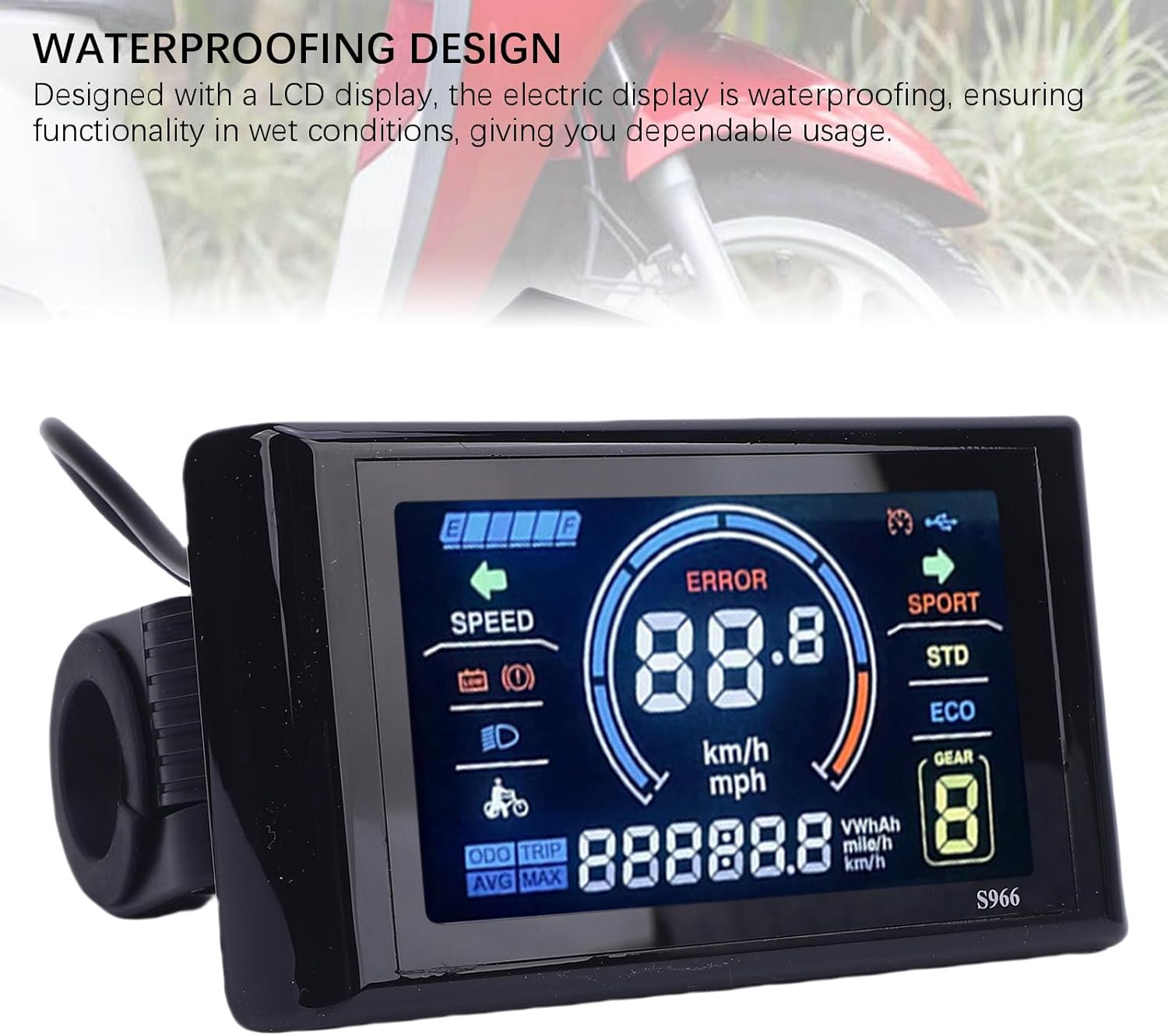

Image 7.1: The S966 display unit, highlighting its waterproof design, suitable for use in various weather conditions.

8. مسئلا حل ڪرڻ

If you encounter issues with your S966 display, refer to the following common problems and solutions:

9. وارنٽي ۽ سپورٽ

The SPYMINNPOO S966 Electric Bike LCD Display comes with a manufacturer's warranty of 90 ڏينهن خريداري جي تاريخ کان. هي وارنٽي عام استعمال هيٺ مواد ۽ ڪاريگري ۾ خرابين کي ڍڪيندي آهي.

For warranty claims, technical support, or any questions not covered in this manual, please contact your retailer or the SPYMINNPOO customer service department. Please have your purchase receipt and product model information ready when contacting support.
