1. پراڊڪٽ ختمview
The Aigostar Solar Outdoor Lights are designed to provide efficient and reliable illumination for various outdoor spaces. These lights feature high-quality LEDs, a wide illumination angle, and a sensitive motion sensor, all powered by solar energy.
- High Brightness & Wide Illumination: Equipped with high-quality LEDs, offering powerful light with 3 illumination surfaces and a 270° angle for extensive coverage.
- حساس موشن سينسر: Features a 120° detection angle and a 6-8 meter range for detecting movement.
- ٽي روشني جا طريقا: Adaptable lighting with constant dim light, strong light activated by motion, and no light with strong light activated by motion.
- توانائي موثر: Integrated 1200mAh rechargeable lithium battery and a solar panel with over 23% efficiency, providing prolonged night illumination with zero electricity costs.
- پائيدار ۽ موسم کان بچاءُ: IP65 waterproof rating and constructed from heat-resistant ABS material, ensuring optimal performance in various weather conditions.

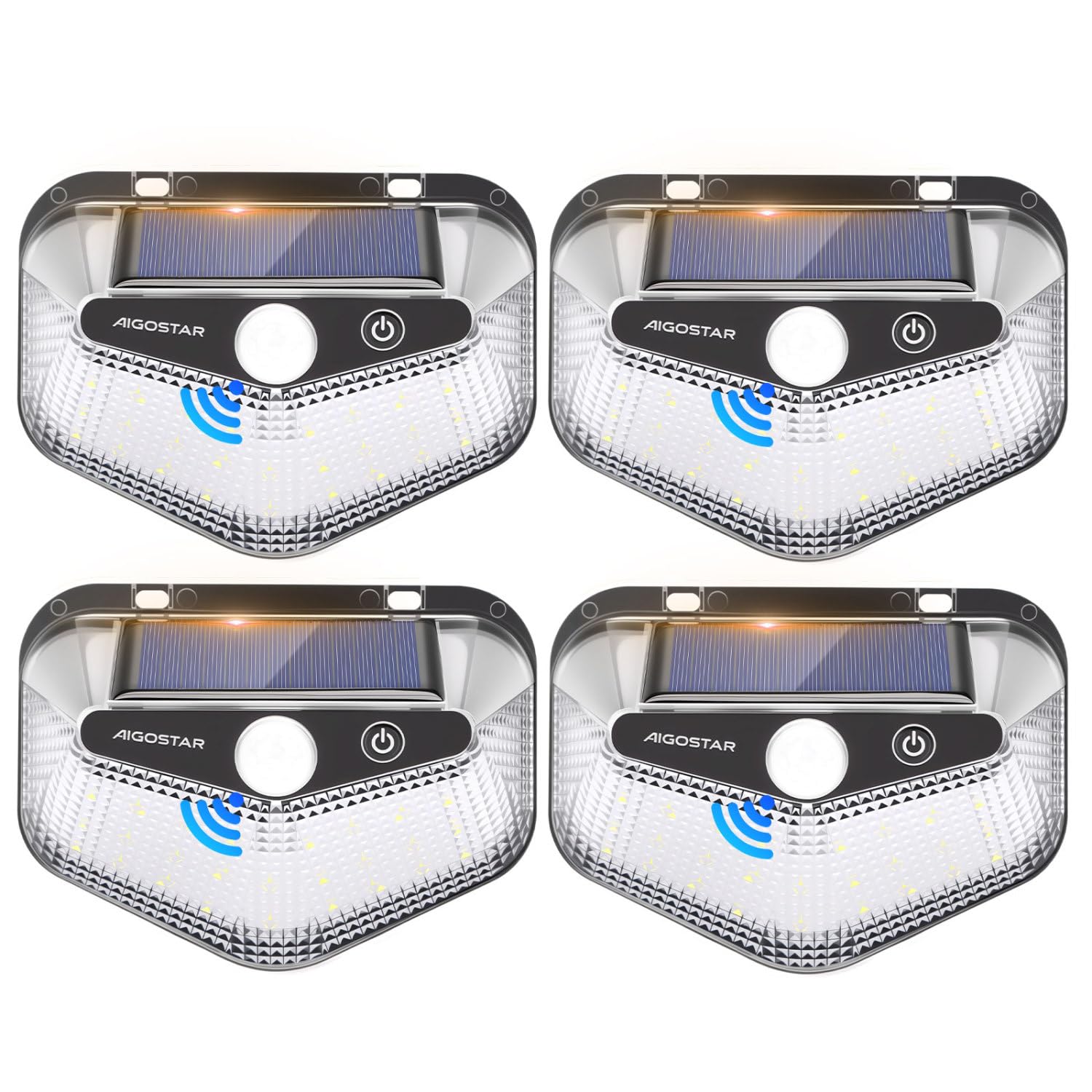

تصوير 1.1: مٿيview of the Aigostar Solar Outdoor Light.
2. حفاظت جي ڄاڻ
انسٽاليشن ۽ استعمال کان اڳ مھرباني ڪري سڀ حفاظتي هدايتون پڙھو ۽ سمجھو. انھن هدايتن تي عمل ڪرڻ ۾ ناڪامي بجليءَ جو جھٽڪو، باهه، يا سنگين زخمي ٿي سگھي ٿي.
- پراڊڪٽ کي ڌار نه ڪريو يا تبديل نه ڪريو. غير مجاز ترميمون وارنٽي کي رد ڪري سگهن ٿيون ۽ حفاظتي خطرا پيدا ڪري سگهن ٿيون.
- Keep the product away from fire or high temperatures.
- Ensure the installation surface is stable and can support the weight of the light.
- مقامي ضابطن جي مطابق بيٽرين ۽ اليڪٽرانڪ حصن کي ضايع ڪريو.
- ايل اي ڊي لائيٽ جي ذريعن سان اکين جي سڌي رابطي کان پاسو ڪريو.
3. پيڪيج مواد
پيڪيج کولڻ وقت پڪ ڪريو ته سڀئي جزا موجود آهن ۽ انهن کي ڪو نقصان نه پهتو آهي.
- Aigostar Solar Outdoor Lights (4 units)
- ماؤنٽنگ اسڪرو ۽ وال پلگ
- استعمال ڪندڙ دستي
4. سيٽ اپ ۽ تنصيب
Follow these steps for proper installation of your solar outdoor lights.
- جڳھ چونڊيو: Select an outdoor location that receives ample direct sunlight for at least 6-8 hours daily to ensure optimal charging. The recommended installation height is between 2 and 2.8 meters.
- روشني تيار ڪريو: پهرين استعمال کان پهريان، حفاظتي فلم کي شمسي پينل تان هٽايو.
- روشنيءَ تي چڙهڻ: Use the provided screws and wall plugs to securely fix the solar light to a wall or desired surface.
- Initial Charge & Activation: Press the power button to activate the light and select a mode. For the first use, allow the light to charge for 24 hours under direct sunlight to ensure the battery is fully conditioned.
Image 4.1: Installation steps and dimensions (135mm width, 101mm height, 52mm depth).
Image 4.2: Illustration of wide illumination area and motion sensor range (6-8m detection, 2-2.8m mounting height).
5. آپريٽنگ هدايتون
The solar light features three operating modes, which can be selected by long-pressing the power button located on the front of the unit.
- Mode 1 (Constant Dim Light): The light will stay on at a dim level throughout the night and turn off automatically during the day. Press the power button once to activate.
- Mode 2 (Dim Light + Motion Sensor): The light will maintain a dim illumination at night. Upon detecting motion, it will switch to strong light for 30 seconds, then return to dim light. Press the power button twice to activate.
- Mode 3 (No Light + Motion Sensor): The light will remain off at night. Upon detecting motion, it will switch to strong light for 30 seconds, then turn off again. Press the power button three times to activate.
تصوير 5.1: ٽنهي روشني جي طريقن جي بصري نمائندگي.
6. سار سنڀال
Regular maintenance ensures optimal performance and extends the lifespan of your solar lights.
- سولر پينل صاف ڪريو: وقتي طور تي سولر پينل کي نرم، ڊي سان صاف ڪريوamp مٽي، مٽي، يا ملبہ هٽائڻ لاءِ ڪپڙو. هڪ صاف پينل سج جي روشني جي وڌ ۾ وڌ جذب ۽ چارجنگ جي ڪارڪردگي کي يقيني بڻائي ٿو.
- چڙهڻ چيڪ ڪريو: Occasionally inspect the mounting screws and ensure the light is securely attached to the wall.
- بيٽري جي سنڀال: The integrated lithium battery is designed for long-term use. Avoid prolonged storage in a completely discharged state.
7. مسئلا حل ڪرڻ
If you encounter issues with your solar outdoor lights, refer to the following common problems and solutions.
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| رات جي وقت روشني نه ايندي آهي. | Insufficient charging; Protective film not removed; Incorrect mode selected. | Ensure the solar panel receives 6-8 hours of direct sunlight daily. Remove any protective film. Long-press the power button to cycle through modes and select the desired one. |
| Light is dim or runs for a short period. | Solar panel is dirty; Insufficient charging; Battery degradation. | Clean the solar panel. Relocate the light to an area with more direct sunlight. If the issue persists after prolonged use, the battery may need replacement (contact support). |
| موشن سينسر حرڪت کي نه ٿو سڃاڻي. | Sensor obstructed; Incorrect mode selected; Sensor range issues. | Ensure the sensor is clear of obstructions. Verify that Mode 2 or Mode 3 is selected. Check installation height (2-2.8m) and ensure movement is within the 6-8m range. |
8. وضاحتون
Detailed technical specifications for the Aigostar Solar Outdoor Lights.
- برانڊ: ايگوسٽار
- ماڊل نمبر: AL-TYNBDD65-P
- پيداوار جي ماپ: 13.5 x 10.1 x 5.2 سينٽي
- پيداوار جو وزن: 600 جي
- مواد: پلاسٽڪ (ABS)
- رنگ: ڪارو ۽ اڇو
- طاقت جو ذريعو: شمسي توانائي
- بيٽري: 1200mAh ريچارجبل ليتيم بيٽري
- شمسي پينل جي ڪارڪردگي: >23%
- بلب جو قسم: ايل اي ڊي
- Number of Lights in Pack: 4
- روشني وارو وهڪرو: 2000 ليمن
- بجلي: 20 واٽ
- رنگ جي درجه حرارت: 6500 ڪيلون
- روشني جو زاويه: 270°
- Motion Sensor Detection Angle: 120°
- Motion Sensor Detection Range: 6-8 ميٽر
- پنروڪ درجه بندي: IP65
- خاص استعمال: Garage, Garden, Patio
- اصليت جو ملڪ: چين
Image 8.1: IP65 waterproof and resistance to heat and cold.
Image 8.2: Efficient solar panel with over 23% conversion rate and charging indicator.
9. وارنٽي ۽ سپورٽ
For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Aigostar webسائيٽ. توهان مدد لاءِ پرچون ڪندڙ سان پڻ رابطو ڪري سگهو ٿا جتان پراڊڪٽ خريد ڪيو ويو هو.
- ٺاهيندڙ: ايگوسٽار
- رابطو: Refer to Aigostar's official webرابطي جي تفصيل لاءِ سائيٽ.
