ویکٹر VECJ8 800A جمپ اسٽارٽر USB پاور يوزر مينوئل سان

1. تعارف

This manual provides essential instructions for the safe and effective operation and maintenance of your Vector VECJ8 800A Jump Starter. Please read this manual thoroughly before using the device and retain it for future reference.

The Vector VECJ8 is a portable jump starter designed to assist in starting most cars and trucks with engines up to V6. It also features integrated USB-C PD and USB-A ports for charging electronic devices, and a powerful LED light for illumination in low-light conditions.

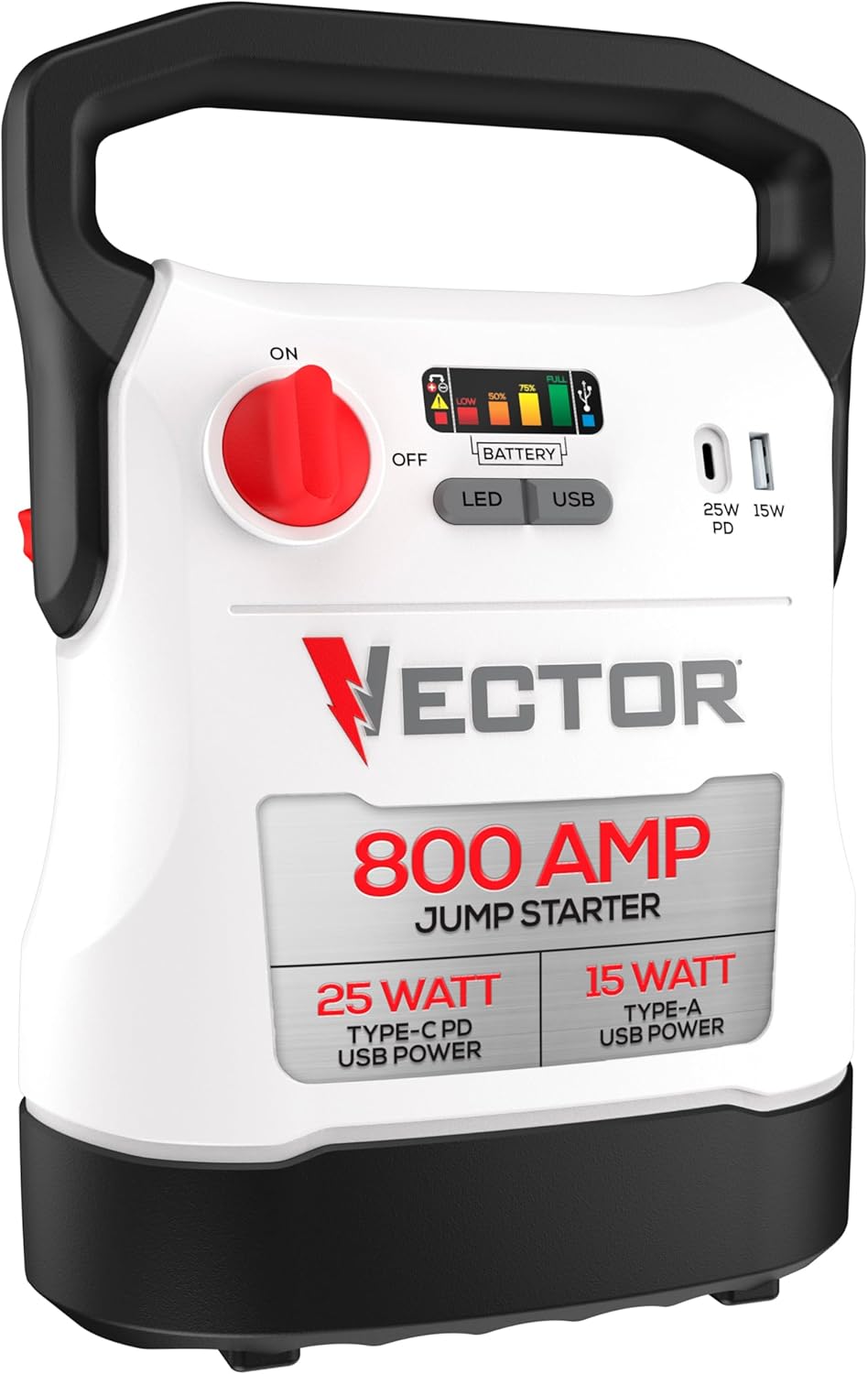

Figure 1: Vector VECJ8 800A Jump Starter - Front View

2. اهم حفاظتي ڄاڻ

خبردار: سڀئي حفاظتي ڊيڄاريندڙ ۽ هدايتون پڙهو. ڊيڄاريندڙن ۽ هدايتن تي عمل ڪرڻ ۾ ناڪامي ٿي سگھي ٿي برقي جھٽڪو، باهه، ۽/يا سنگين زخمي.

• هميشه بيٽرن سان ڪم ڪرڻ دوران اکين جي حفاظت جو لباس رکو.
• پڪ ڪريو ته جمپ اسٽارٽر استعمال ڪرڻ کان اڳ مڪمل طور تي چارج ٿيل آهي.
• cl سان ڳنڍيوamps in the correct order: positive (+) to positive (+), negative (-) to a metal part of the vehicle's engine block (not directly to the battery negative terminal).
• ڳاڙهي ۽ ڪارو cl جي اجازت نه ڏيوampهڪ ٻئي کي ڇهڻ لاءِ.
• ڊوائيس کي ٻارن کان پري رکو.
• ڊوائيس کي مينهن يا گندي حالتن ۾ ظاهر نه ڪريو.
• مخصوص جمپ اسٽارٽنگ طريقيڪار لاءِ پنهنجي گاڏي جي مالڪ جي دستورالعمل جو حوالو ڏيو.

3. مصنوعات جون خاصيتون

The Vector VECJ8 is equipped with several features for convenience and safety:

• 800 جي چوٽي Amp Jump Starter: Capable of starting most vehicles up to V6 engines.
• 25-Watt USB-C PD Port: For fast charging of compatible devices.
• 15-Watt USB-A Port: For charging standard USB devices.
• LED ڪم لائيٽ: Provides illumination for nighttime or low-light situations.
• ريورس پولٽيٽي تحفظ: Prevents damage if jumper cables are connected incorrectly.
• بيٽري جي حالت اشارو: Displays the internal battery charge level.
• مطابقت: Works with WET, GEL, and AGM 12V lead-acid batteries.

Figure 2: Key features of the Vector VECJ8 Jump Starter.

4. پيڪيج مواد

پيڪنگ کولڻ وقت، پڪ ڪريو ته سڀئي شيون موجود آهن ۽ انهن کي نقصان نه پهتو آهي:

• Vector VECJ8 800A Jump Starter Unit
• Heavy-Duty Metal Clamps and Cables (integrated)
• گهريلو چارجر
• استعمال ڪندڙ جو دستياب (ھي دستاويز)

5. سيٽ اپ ۽ شروعاتي چارجنگ

5.1 Initial Charging of the Unit

Before first use, fully charge the Vector VECJ8 unit. This ensures optimal performance and extends battery life.

1. Connect the home charger to the charging port on the jump starter unit.
2. Plug the home charger into a standard 120V AC wall outlet.
3. The battery status indicators will illuminate, showing the charging progress. Charge until all indicators show a full charge.
4. Once fully charged, disconnect the home charger from the wall outlet and then from the jump starter unit.

It is recommended to recharge the unit every 3 months when not in use to maintain battery health.

شڪل 3: پاسي view of the unit, indicating the charging port.

6. آپريٽنگ هدايتون

6.1 ٽپو شروع ڪندي گاڏي

Follow these steps carefully to jump start a vehicle:

1. Ensure the vehicle's ignition is OFF and all accessories (lights, radio, etc.) are turned off.
2. Place the jump starter on a stable, flat surface near the vehicle's battery.
3. ڳنڍيو ڳاڙهو مثبت (+) ڪلamp گاڏي جي بيٽري جي مثبت (+) ٽرمينل ڏانهن.
4. ڳنڍيو ڪارو ناڪاري (-) ڪلوamp to a non-moving metal part of the vehicle's engine block or chassis, away from the battery. Do NOT connect directly to the negative battery terminal.
5. Turn the jump starter's power switch to the ON position. The polarity indication lights will confirm correct connection (Green for correct, Red for incorrect).
6. Attempt to start the vehicle. If it does not start immediately, wait 30-60 seconds before trying again. Do not crank the engine for more than 5 seconds per attempt.
7. Once the vehicle starts, immediately turn the jump starter's power switch to the بند پوزيشن.
8. ڊسڪ ڪيو ڪارو ناڪاري (-) ڪلوamp پهريون ، پوءِ ڳاڙهو مثبت (+) ڪلamp.

Figure 4: Proper connection of the jump starter to a vehicle battery.

6.2 Using the USB Ports

The VECJ8 unit features both USB-C PD and USB-A ports for charging portable electronic devices.

1. Ensure the jump starter unit is sufficiently charged.
2. Connect your device's USB charging cable to the appropriate USB-C PD (25W) or USB-A (15W) port on the jump starter.
3. Press the USB button to activate the USB charging function.
4. Your device should begin charging. Disconnect your device once charging is complete.

6.3 ايل اي ڊي ورڪ لائيٽ استعمال ڪندي

The integrated LED work light provides convenient illumination.

1. Press the LED button to turn the light ON.
2. Press the LED button again to cycle through different brightness modes or to turn it OFF.

وڊيو 1: پراڊڪٽ ختمview of the Vector VECJ8 Jump Starter, demonstrating its features and usage.

7. مينٽيننس ۽ اسٽوريج

• ري چارجنگ: Recharge the unit after each use and every 3 months when not in use to maintain optimal battery performance.
• صفائي: يونٽ جي ٻاهرين حصي کي نرم، سڪل ڪپڙي سان صاف ڪريو. سخت ڪيميڪل يا رگڙندڙ شيون استعمال نه ڪريو.
• اسٽوريج: Store the jump starter in a cool, dry place, away from direct sunlight, moisture, and flammable materials. Ensure the power switch is in the OFF position.
• ڪيبل جي سنڀال: Inspect the jumper cables and clamps for any damage or corrosion before each use. Replace if necessary.

8. مسئلا حل ڪرڻ

9. وضاحتون

10. وارنٽي ۽ سپورٽ

This product is covered by a one-year limited warranty. For detailed warranty information and to register your product, please visit the official VECTOR webسائيٽ يا ڪسٽمر سپورٽ سان رابطو ڪريو.

For technical assistance or inquiries, please refer to the contact information provided on the product packaging or the manufacturer's webسائيٽ.
