1. تعارف
The Sunsun AUV Series Internal UV Sterilizer is designed to maintain clear and healthy aquarium water by inhibiting the growth of harmful microorganisms and preventing algae reproduction. This device helps reduce the presence of germs and ensures crystal clear water in your pond or fish tank.

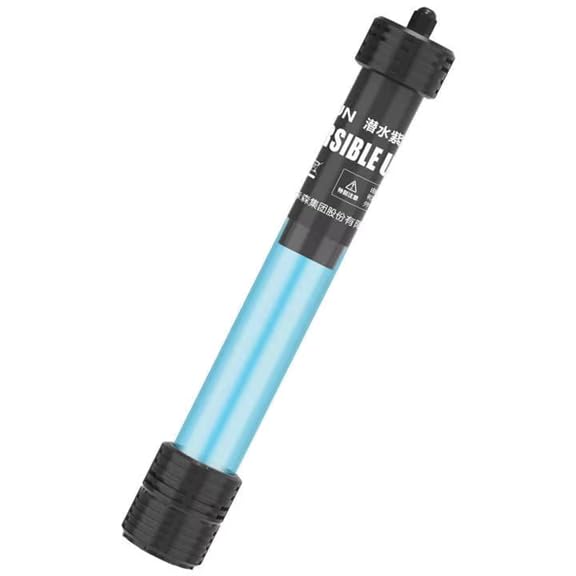

Image 1.1: Sunsun AUV Series Internal UV Sterilizer unit. This image shows the compact, cylindrical design of the submersible UV sterilizer, typically black in color, with a power cord extending from one end.
2. حفاظتي هدايتون
- UV Radiation Hazard: Ultraviolet (UV) light can be harmful to eyes and skin. Never look directly at the UV lamp when it is operating. Ensure the unit is fully enclosed and submerged before powering on.
- برقي حفاظت: Always disconnect the power supply before performing any maintenance, installation, or handling the unit. A separate power switch is recommended for safer operation.
- ٻڏڻ: This device is designed for submersible use only. Ensure the unit is completely submerged in water before connecting to power.
- پاڻي جي گرمي پد: Do not operate in water temperatures exceeding 35°C (95°F) or below 4°C (39°F).
- ٻار ۽ پالتو جانور: ڊوائيس ۽ ان جي پاور ڪنڊ کي ٻارن ۽ پالتو جانورن جي پهچ کان پري رکو.
- نقصان جي چڪاس: Do not operate the unit if the power cord, plug, or any part of the housing is damaged. Contact customer support for assistance.
3. پيڪيج مواد
مھرباني ڪري چيڪ ڪريو ته سڀ شيون موجود آھن ۽ سٺي حالت ۾ آھن:
- Sunsun AUV Series Internal UV Sterilizer Unit (AUV-24W)
- پاور اڊاپٽر
- Mounting Suction Cups
- استعمال ڪندڙ جو دستياب (ھي دستاويز)
4. سيٽ اپ ۽ تنصيب
- کوليو ۽ چڪاس ڪريو: Carefully unpack all components. Inspect the UV sterilizer unit, power adapter, and cord for any signs of damage. Do not proceed with installation if any damage is found.
- Attach Mounting Suction Cups: Securely attach the provided suction cups to the body of the UV sterilizer unit. These will be used to fix the unit inside your aquarium or pond.
- پوزيشن: Submerge the UV sterilizer completely in your aquarium or pond. Place it in an area with good water circulation to ensure efficient water treatment. Avoid placing it directly in front of a strong filter outflow, which might reduce contact time.
- يونٽ کي محفوظ ڪريو: Press the suction cups firmly against the tank wall or bottom to secure the unit in place. Ensure it is stable and cannot float or move freely.
- پاور Connectنيو: Connect the power adapter to the sterilizer unit. Then, plug the power adapter into a suitable electrical outlet. It is highly recommended to use a separate power switch for the unit for added safety and convenience.
- آبدوز جي تصديق ڪريو: Before powering on, double-check that the entire UV lamp and its housing are fully submerged in water. Operating the UV lamp out of water can cause overheating and damage, and expose users to harmful UV radiation.
5. آپريٽنگ هدايتون
Once the Sunsun AUV Series UV Sterilizer is properly installed and connected to power, it will begin operation. The UV light continuously treats the water that flows around it, inhibiting the growth of harmful microorganisms and preventing algae.
- مسلسل آپريشن: The unit is designed for continuous operation. For best results in maintaining clear water and controlling pathogens, it is generally recommended to run the UV sterilizer 24/7.
- Initial Results: Noticeable improvements in water clarity may take several days to a few weeks, depending on the initial water conditions, the severity of algae or bacterial bloom, and the volume of your aquarium or pond.
- نگراني: Regularly observe your aquarium water clarity and fish health. The UV sterilizer contributes to a healthier aquatic environment.
6. سار سنڀال
Regular maintenance is crucial for the optimal performance and longevity of your UV sterilizer.
- پاور ڪنيڪشن: Always disconnect the power supply to the UV sterilizer before performing any maintenance or handling the unit.
- کوارٽز آستين جي صفائي:
Over time, the transparent quartz sleeve that protects the UV lamp may accumulate algae, mineral deposits, or other debris. This buildup can reduce the effectiveness of the UV light.
- Carefully remove the UV sterilizer unit from the water.
- Gently wipe the exterior of the quartz sleeve with a soft, clean cloth to remove any buildup. For stubborn deposits, a mild vinegar solution can be used, followed by a thorough rinse with clean water.
- Do not use abrasive cleaners or harsh chemicals, as these can scratch or damage the quartz sleeve.
- UV ايلamp متبادل:
يو وي ايلamp has a finite lifespan, typically 6 to 12 months of continuous use, after which its germicidal effectiveness diminishes, even if it still appears to be glowing. It is recommended to replace the UV lamp سالانه.
- Refer to your specific model (AUV-24W) to purchase the correct replacement UV lamp.
- احتياط سان پراڻي UV کي هٽايو.amp from the unit, following the manufacturer's instructions (usually involves unscrewing an end cap and sliding out the lamp).
- Handle the new lamp by its ceramic ends, avoiding direct contact with the glass, as oils from your skin can create hot spots and reduce lamp زندگي.
- نئون ايل داخل ڪريوamp and reassemble the unit securely.
- Dispose of old UV lamps according to local regulations for hazardous waste.
- Housing and Cord Inspection: Periodically inspect the sterilizer's housing and power cord for any signs of cracks, damage, or wear. If any damage is observed, discontinue use immediately and replace the unit.
7. مسئلا حل ڪرڻ
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| UV ايلamp not lighting up. |
|
|
| Water remains cloudy or green. |
|
|
| يونٽ مان پاڻي نڪرڻ. |
|
|
8. وضاحتون
- برانڊ: SunSun
- ماڊل: AUV-24W
- طاقت جو ذريعو: AC (alternating current) adapter
- روشني جو قسم: Ultraviolet (UV) Light
- روشني جو ذريعو Wattage: 24 واٽ
- چڙهڻ جو قسم: آبدوز
- شيء جو وزن: Approximately 1.36 kg (1365 Grams)
- پيداوار جي ماپ (LxWxH): تقريبن 54.5 x 12 x 12 سينٽ
- اصليت جو ملڪ: چين
- بلب جون خاصيتون: UV sterilization
- رنگ: ڪارو
- شڪل: گول
- ختم جو قسم: پائوڊر ليپ ٿيل
- تجويز ڪيل ٽينڪ جو مقدار: 35000 ليٽر تائين
9. وارنٽي ۽ سپورٽ
For specific warranty information, product support, or to inquire about replacement parts, please contact your retailer or the manufacturer directly. It is advisable to retain your purchase receipt as proof of purchase for any warranty claims.
