GardePro X20 Cellular Trail Camera User Manual

1. پراڊڪٽ ختمview

The GardePro X20 Cellular Trail Camera is designed for capturing wildlife activity with advanced features such as 48MP photos, 1296P HD videos, and cellular connectivity. It supports Verizon and AT&T networks, offering real-time monitoring through the GardePro Mobile App.

Image 1.1: The GardePro X20 Cellular Trail Camera shown alongside a smartphone displaying its gallery interface.

2. پيڪيج مواد

پڪ ڪريو ته سڀئي شيون پيڪيج ۾ موجود آهن:

• 1 x GardePro X20 Cellular Trail Camera
• 1 x چڙهڻ واري پٽي
• 1 X Antenna
• 1 x Cellular SIM card (pre-installed)
• 1 x ھدايت وارو دستور
• 1 x USB ڪنڊ

Note: Memory card and batteries are not included and must be supplied by the user.

3. سيٽ اپ گائيڊ

3.1. بيٽري لڳائڻ

1. Open the camera's battery compartment.
2. Insert 8 AA batteries (not included), ensuring correct polarity.
3. Alternatively, connect the GardePro SP350 solar panel (sold separately) for external power.

3.2. ايس ڊي ڪارڊ لڳائڻ

1. ايس ڊي ڪارڊ سلاٽ ڳوليو.
2. Insert a compatible SD card (up to 512GB, not included) into the slot until it clicks.
3. It is recommended to format the SD card using the camera's menu or the GardePro App before first use.

3.3. SIM Card and Network Activation

The cellular SIM card is pre-installed. The camera will automatically connect to the strongest available Verizon or AT&T network signal in your area upon activation.

3.4. App Installation and Camera Pairing

1. Download the GardePro Mobile App from your device's app store (Android/iOS).
2. Follow the in-app instructions to create an account and pair your X20 camera.
3. The app facilitates camera setup, viewing, and management of photos and videos.

4. آپريٽنگ هدايتون

4.1. پاور آن/آف

Use the power switch located on the camera to turn it on or off. The camera will enter monitoring mode after a brief startup sequence.

4.2. فوٽوز ۽ وڊيوز کي پڪڙڻ

• The camera captures 48MP photos and 1296P videos.
• It features a 0.2-second fast trigger speed and a 110° wide-angle lens to capture motion effectively.
• The camera supports 1-3 photo bursts for fast-moving subjects.
• Night vision is provided by 940nm no-glow infrared LEDs, effective up to 75 feet, which are undetectable to wildlife.

4.3. Using the GardePro Mobile App

The GardePro App is central to managing your camera. Key features include:

• وڊيو پريviews: Receive 960×540 motion-triggered video previews (3–300 seconds) directly to the app, allowing instant review of events without downloading full files.
• فوٽو پريviews: Automatically receive 960×540 photo previews.
• Shared Data Plan: Add multiple cameras to a single plan to share data and reduce costs.
• ڪئميرا شيئرنگ: Share access to your camera with other users.
• جيئڻ View: Monitor activity in real-time (if supported by your plan).
• لوپ رڪارڊنگ: Enable continuous recording, overwriting the oldest files جڏهن SD ڪارڊ ريل هوندو.

Image 4.1: Event video previews allow users to see full action directly on their smartphone.

Image 4.2: The GardePro App provides clear, auto-sent photo previews and alerts.

Image 4.3: The camera sharing feature allows multiple users to access the camera's feed.

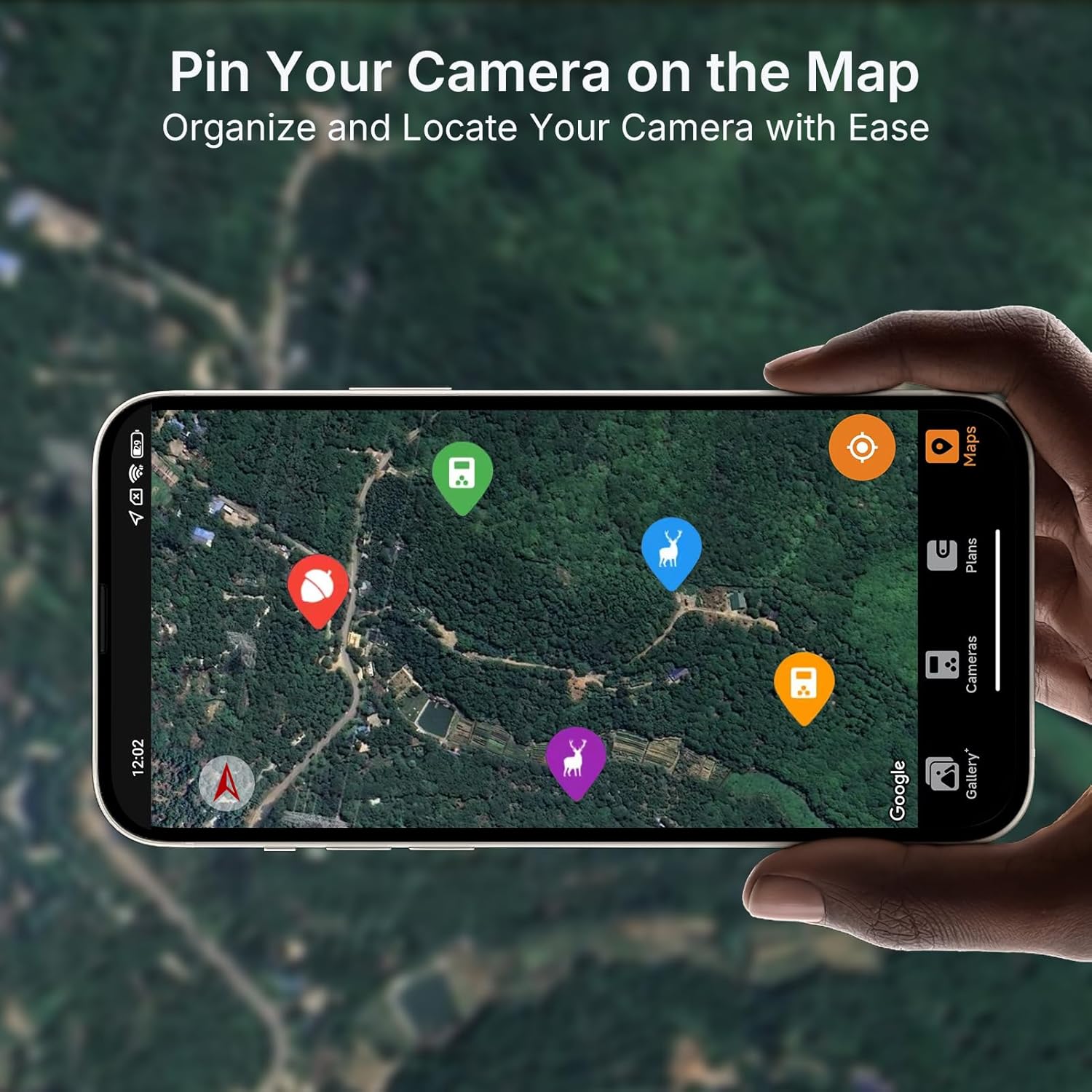

Image 4.4: Pin your camera on the map feature for easy organization and location tracking.

Image 4.5: The 110° ultra-wide view ensures comprehensive coverage of the monitored area.

4.4. Video Preview مظاهرو

The following video demonstrates the full video preview capability of the GardePro Cellular Trail Camera, highlighting its advantage over other systems that offer only short burst GIFs.

5. سار سنڀال

• صفائي: Gently clean the camera lens and IR sensors with a soft, dry cloth. Avoid abrasive materials.
• بيٽري چيڪ: Regularly check battery levels via the app or on the camera's display. Replace all batteries simultaneously for optimal performance.
• ايس ڊي ڪارڊ انتظام: Periodically format the SD card to prevent data corruption and ensure optimal recording. Back up important files فارميٽ ڪرڻ کان اڳ.
• موسم جي حفاظت: Ensure the camera's latches are securely closed to maintain its IP66 waterproof rating. Avoid submerging the camera.

6. مسئلا حل ڪرڻ

• ڪئميرا آن نه آهي:
  • Check battery polarity and ensure batteries are fully charged.
  • پڪ ڪريو ته پاور سوئچ "آن" پوزيشن ۾ آهي.
• No Photos/Videos Captured:
  • Ensure the SD card is properly inserted and has sufficient free space.
  • Check motion sensor settings and sensitivity in the app.
  • Verify that the camera is in an active recording mode.
• خراب تصوير/وڊيو معيار:
  • ڪئميرا لينس کي صاف ڪريو.
  • Ensure adequate lighting for daytime shots; check IR settings for night vision.
• No Cellular Connection:
  • Confirm the camera is in an area with Verizon or AT&T network coverage.
  • Check the SIM card status and data plan in the GardePro App.
  • ڪئميرا ٻيهر شروع ڪريو.
• ايپ ڪنيڪشن جا مسئلا:
  • پڪ ڪريو ته توهان جي اسمارٽ فون ۾ هڪ مستحڪم انٽرنيٽ ڪنيڪشن آهي.
  • Update the GardePro App to the latest version.
  • ڪئميرا ۽ پنهنجي اسمارٽ فون ٻئي ٻيهر شروع ڪريو.

7. وضاحتون

8. وارنٽي ۽ سپورٽ

For warranty information and technical support, please contact GardePro customer service. Refer to the official GardePro website or the GardePro Mobile App for contact details and the most up-to-date support resources.

Manufacturer: GardePro
