ATOMSTACK R8 Pro Rotary Laser Roller & Chuck User Manual

1. تعارف

The ATOMSTACK R8 Pro Rotary Laser Roller & Chuck is an advanced accessory designed to expand the engraving capabilities of your ATOMSTACK laser engraver. It features adjustable jaws to securely hold objects of various shapes and sizes, enabling precise engraving on irregular items such as cups, balls, and rings. This versatile tool ensures stable material support during the engraving process, enhancing efficiency and protecting delicate materials.

2. پيڪيج مواد

مھرباني ڪري تصديق ڪريو ته ھيٺ ڏنل سڀ شيون توھان جي پيڪيج ۾ شامل آھن:

• 1 x Chuck Main Unit
• 1 x Motor Connection Cable
• 1 x White Connection Cable
• 1 x Black Connection Cable
• 3 x L-shaped Jaws
• 3 x Scale Jaws
• 3 x Hexagonal Jaws
• 3 x Threaded Cylindrical Pins
• 1 x Tailstock Support
• 1 x Mini Leveler
• 1 x Soft Measuring Tape
• 1 x Vernier Caliper
• 1 x اسڪرو سيٽ
• 1 x هيڪس رنچ
• 1 x ھدايت وارو دستور

Figure 2.1: All components included in the ATOMSTACK R8 Pro package.

3. سيٽ اپ

3.1 پيڪنگ ۽ چڪاس

Carefully remove all components from the packaging. Inspect each item for any signs of damage. If any components are missing or damaged, please contact customer support immediately.

3.2 Connecting the Rotary Module

The R8 Pro is compatible with various ATOMSTACK laser engraver models. For older frame models that lack automatic detection, use the provided old motor cable for compatibility.

1. Place the R8 Pro Rotary Module on a stable surface within your laser engraver's working area.
2. Connect the motor connection cable from the R8 Pro to the designated rotary axis port on your ATOMSTACK engraver.
3. Ensure all jaws are securely attached and adjusted according to the object you intend to engrave.

Figure 3.1: The R8 Pro Rotary Module integrated with an ATOMSTACK laser engraver.

Figure 3.2: Adjustable spacing between rotating axes for different object sizes.

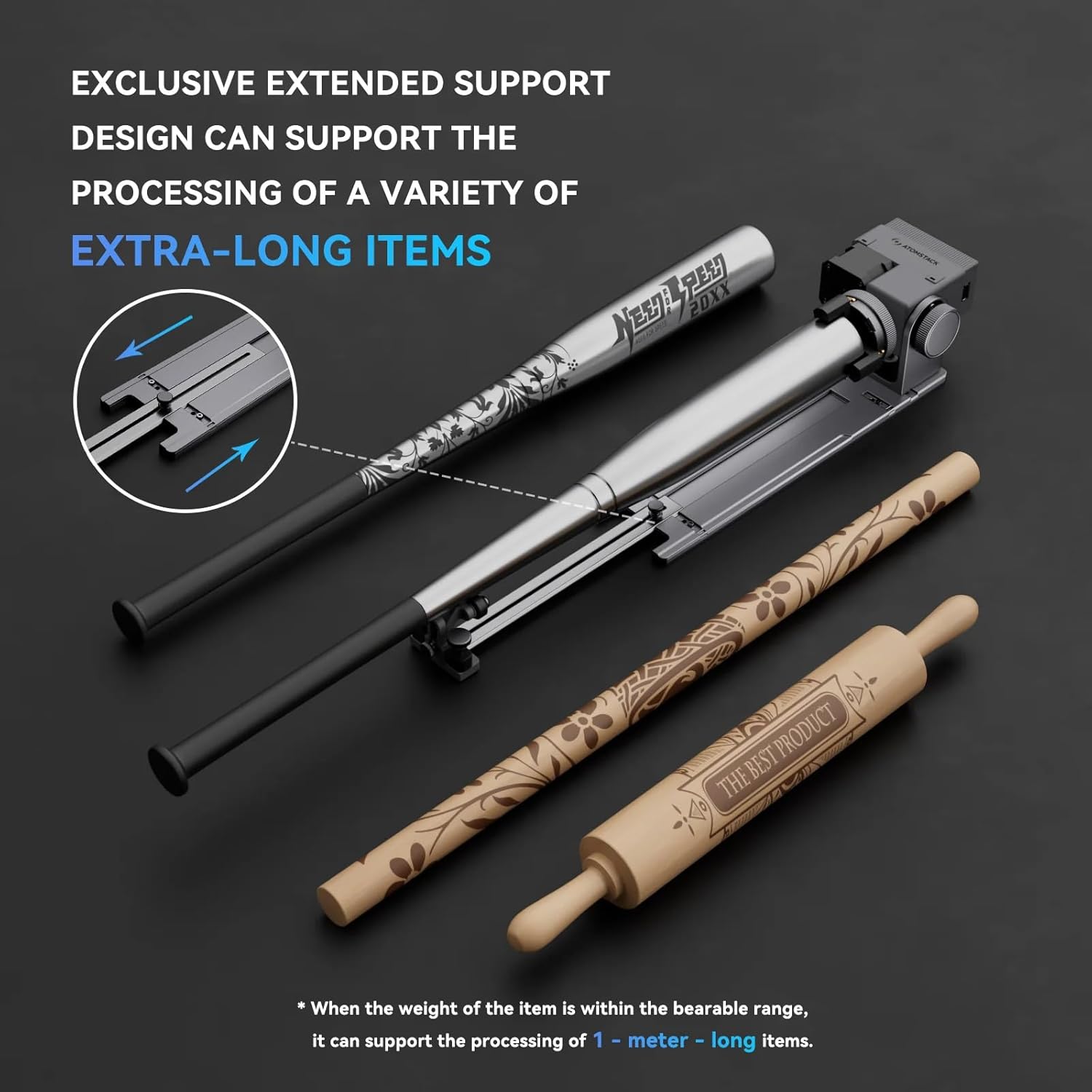

Figure 3.3: Extended support design for processing extra-long items.

4. آپريٽنگ هدايتون

4.1 Preparing the Object for Engraving

The R8 Pro is designed for versatile engraving on various cylindrical and irregular objects. Its adjustable jaws ensure a secure grip.

• Cylindrical Objects: Place the object between the rollers or chuck jaws, ensuring it is centered and level. Adjust the jaws to firmly hold the object without overtightening.
• Irregular Objects: Utilize the L-shaped, scale, or hexagonal jaws to conform to the unique shape of the object (e.g., mugs, baseballs, rings). The flexible design adapts to different forms for stable engraving.

Figure 4.1: Engraving on regular cylindrical objects like tumblers and cans.

Figure 4.2: Engraving on irregular cylindrical objects such as wine bottles and glasses.

4.2 سافٽ ويئر ترتيب ڏيڻ

Refer to your ATOMSTACK laser engraver's software manual for specific settings related to rotary engraving. Typically, you will need to:

1. Select the rotary engraving mode in your software (e.g., AtomStack Studio).
2. Input the object's diameter and perimeter for accurate rotation calculations.
3. Adjust engraving parameters (speed, power, passes) based on the material and desired effect.

5. سار سنڀال

Regular maintenance ensures the longevity and optimal performance of your R8 Pro Rotary Module:

• صفائي: After each use, clean the jaws and rollers to remove any dust, debris, or material residue. Use a soft cloth and mild cleaning solution if necessary.
• لوڻ: Periodically apply a small amount of lubricant to the moving parts of the chuck and rollers to ensure smooth operation.
• اسٽوريج: Store the R8 Pro in a clean, dry environment when not in use to prevent corrosion and damage.

6. مسئلا حل ڪرڻ

7. وضاحتون

8. وارنٽي ۽ سپورٽ

For warranty information and technical support, please refer to the official ATOMSTACK webسائيٽ تي وڃو يا پنهنجي پرچون ڪندڙ سان رابطو ڪريو. وارنٽي دعوائن لاءِ پنهنجي خريداري جي رسيد رکو.

First available on Amazon.it: August 15, 2025.
