ARTETHYS Corner Vanity Desk User Manual

1. تعارف

Thank you for choosing the ARTETHYS Corner Vanity Desk. This manual provides essential information for the safe assembly, operation, and maintenance of your new vanity desk. Please read these instructions carefully before beginning assembly and retain them for future reference.

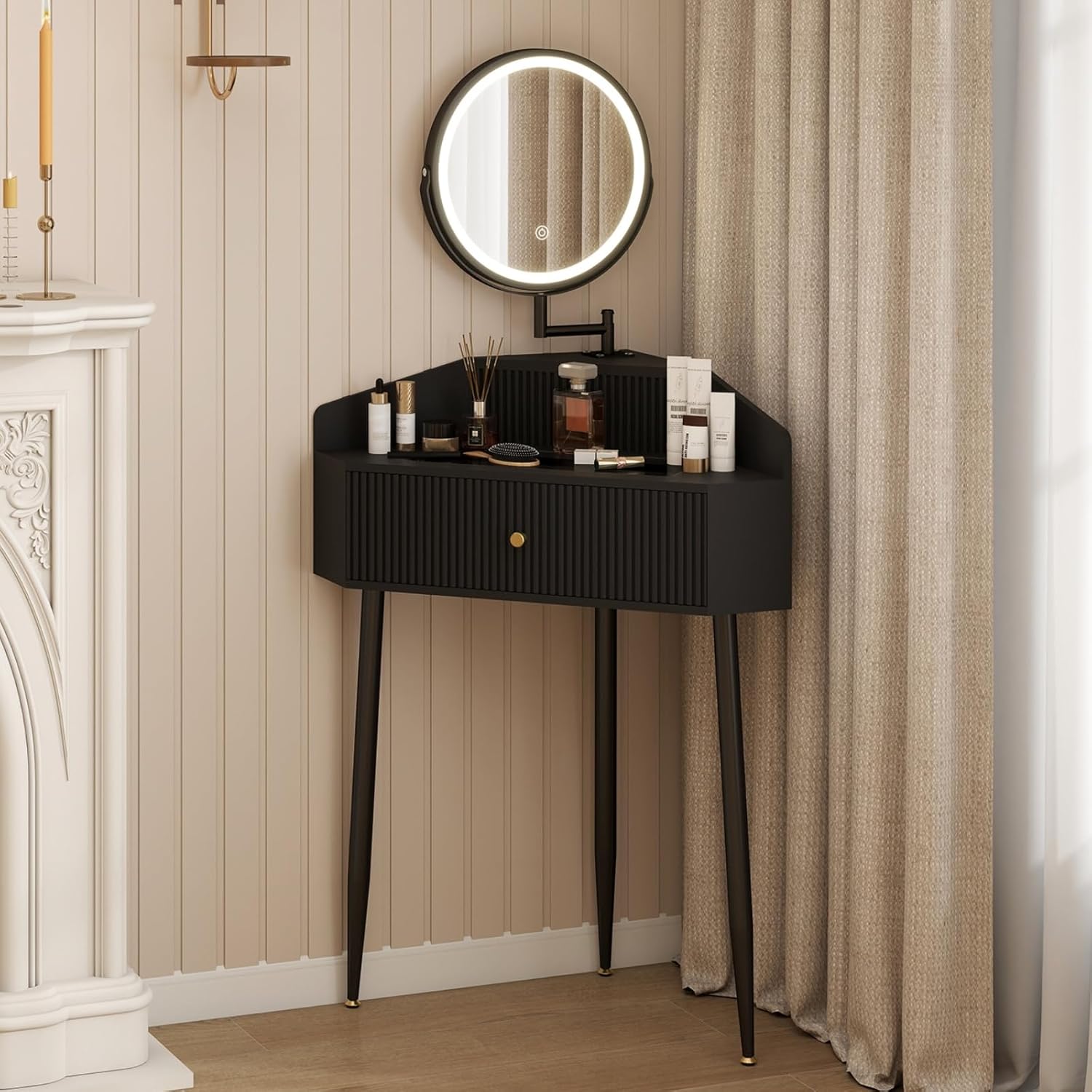

Image 1.1: The ARTETHYS Corner Vanity Desk, featuring a black finish and a round illuminated mirror, positioned in a room corner.

2. مصنوعات جون خاصيتون

• 360° Rotating & Retractable LED Mirror: The mirror can be adjusted to any angle, swiveling 360° and sliding sideways for optimal illumination.
• ترتيب ڏيڻ واري LED روشني: Long-press the mirror's touch sensor to dim or brighten the lights (10%-100%). Features three color modes: white, warm white, and yellow.
• Sleek Glass Top Vanity: A transparent glass surface and a see-through drawer provide a modern aesthetic and quick visibility of cosmetics and accessories.
• Space-Saving Corner Design: Specifically designed to fit into small corners, making it ideal for compact rooms or apartments.
• مربوط اسٽوريج: Includes a glass viewing drawer for organizing cosmetics, skincare products, and accessories.
• Sturdy & Level Adjustment: Equipped with adjustable foot pads to ensure stability on uneven surfaces.

Image 2.1: Illustration highlighting the reversible mirror, removable mirror rod, tabletop glass display design, and large drawer of the vanity desk.

3. پيڪيج مواد

مھرباني ڪري اسيمبلي شروع ڪرڻ کان اڳ پڪ ڪريو ته سڀئي حصا موجود آھن. جيڪڏھن ڪو به حصو غائب يا خراب آھي، مھرباني ڪري ڪسٽمر سپورٽ سان رابطو ڪريو.

• Vanity Desk Frame (with pre-installed drawer)
• Desk Legs (4 pieces)
• LED Mirror Assembly
• Mirror Rod
• Hardware Pack (screws, adjustable foot pads)
• Assembly Tools (if provided)

4. حفاظت جي ڄاڻ

• هميشه پراڊڪٽ کي نرم، صاف مٿاڇري تي گڏ ڪريو ته جيئن خرچي نه اچي.
• استعمال کان اڳ پڪ ڪريو ته سڀئي اسڪرو ۽ فاسٽنرز محفوظ طور تي مضبوط ڪيا ويا آهن. وقت بوقت چيڪ ڪريو ۽ ضرورت مطابق ٻيهر سخت ڪريو.
• Do not overload the drawer or place excessively heavy items on the glass top.
• ننڍن حصن ۽ پيڪنگنگ مواد کي ٻارن کان پري رکو ته جيئن ٿڪڻ جي خطرن کي روڪيو وڃي.
• If the vanity includes a wall-anchoring kit, it is highly recommended to use it to prevent tipping, especially in households with children or pets.
• Avoid exposing the mirror's electrical components to water or excessive moisture.

5. سيٽ اپ ۽ اسيمبلي جون هدايتون

Assembly of the ARTETHYS Corner Vanity Desk is straightforward and primarily involves attaching the legs and mirror. The main drawer is pre-installed.

1. انپيڪ اجزاء: Carefully remove all parts from the packaging and lay them out on a protected surface. Verify all listed components are present.
2. ڊيسڪ ٽنگون ڳنڍيو: Locate the four desk legs. Screw each leg securely into the designated mounting points on the underside of the vanity desk frame. Ensure they are tightened firmly.
3. ترتيب ڏيڻ وارا فوٽ پيڊ انسٽال ڪريو: Screw the adjustable foot pads into the bottom of each leg. These can be adjusted later to level the desk on uneven floors.
4. Assemble Mirror Rod: Attach the mirror rod to the vanity desk according to the included diagram.
5. Attach LED Mirror: Secure the LED mirror to the mirror rod using the provided screws. Do not overtighten. Ensure the mirror is positioned evenly.
6. Connect Mirror Power: Plug the mirror's power cable into the designated port on the vanity desk or a suitable power source as indicated in the specific assembly guide.
7. پوزيشن: Place the assembled vanity desk in your desired corner. Adjust the foot pads as necessary to ensure stability.

Image 5.1: The vanity desk shown with the mirror positioned on the left and on the right, demonstrating its adjustable placement.

6. آپريٽنگ هدايتون

6.1 ايل اي ڊي آئيني جو آپريشن

• پاور آن / آف: ايل اي ڊي لائيٽن کي آن يا آف ڪرڻ لاءِ آئيني جي مٿاڇري تي پاور آئڪن کي هلڪو ڇڪيو.
• رنگ موڊ تبديل ڪريو: With the lights on, short-press the power icon to cycle through the three color modes: white, warm white, and yellow.
• روشني کي ترتيب ڏيو: With the lights on, long-press the power icon to continuously dim or brighten the lights (from 10% to 100%). Release when the desired brightness is achieved.
• Mirror Rotation and Retraction: The mirror can be manually rotated 360 degrees and slides sideways along its rod to achieve your preferred viewزاويه.

Image 6.1: Visual guide demonstrating the three lighting modes (white, warm white, yellow) and how to adjust brightness by long-pressing the touch switch.

6.2 دراز جو استعمال

The vanity features a pre-installed drawer with a transparent glass top. This allows for easy visibility and access to stored items. Gently pull the knob to open the drawer and push to close.

7. سار سنڀال

• ڊيسڪ جي مٿاڇري کي صاف ڪرڻ: ڊيسڪ جي مٿاڇري کي نرم، ڊي سان صاف ڪريوamp ڪپڙو. گھڻائي صاف ڪندڙ يا سخت ڪيميائي کان بچاء جيڪي ختم ڪري سگھن ٿيون.
• شيشي جي مٿاڇري کي صاف ڪرڻ: Use a glass cleaner and a microfiber cloth to clean the glass surface.
• آئيني جي سنڀال: Clean the mirror surface with a soft, lint-free cloth and a non-ammonia glass cleaner. Do not spray cleaner directly onto the mirror; apply it to the cloth first.
• باقاعده چڪاس: Periodically inspect all screws and connections to ensure they remain tight.

8. مسئلا حل ڪرڻ

• ڊيسڪ ڊبل آهي: Adjust the individual foot pads at the bottom of each leg until the desk is stable and level.
• Mirror Lights Not Working:
  • Ensure the mirror's power cable is securely connected to the vanity desk.
  • چيڪ ڪريو ته پاور آئوٽ ڪارائتو آهي.
  • Lightly touch the power icon on the mirror to activate.
• دراز جي لٺ يا آساني سان نه سلائڊ:
  • Ensure the drawer is properly aligned on its runners.
  • Check for any obstructions within the drawer mechanism.

9. وضاحتون

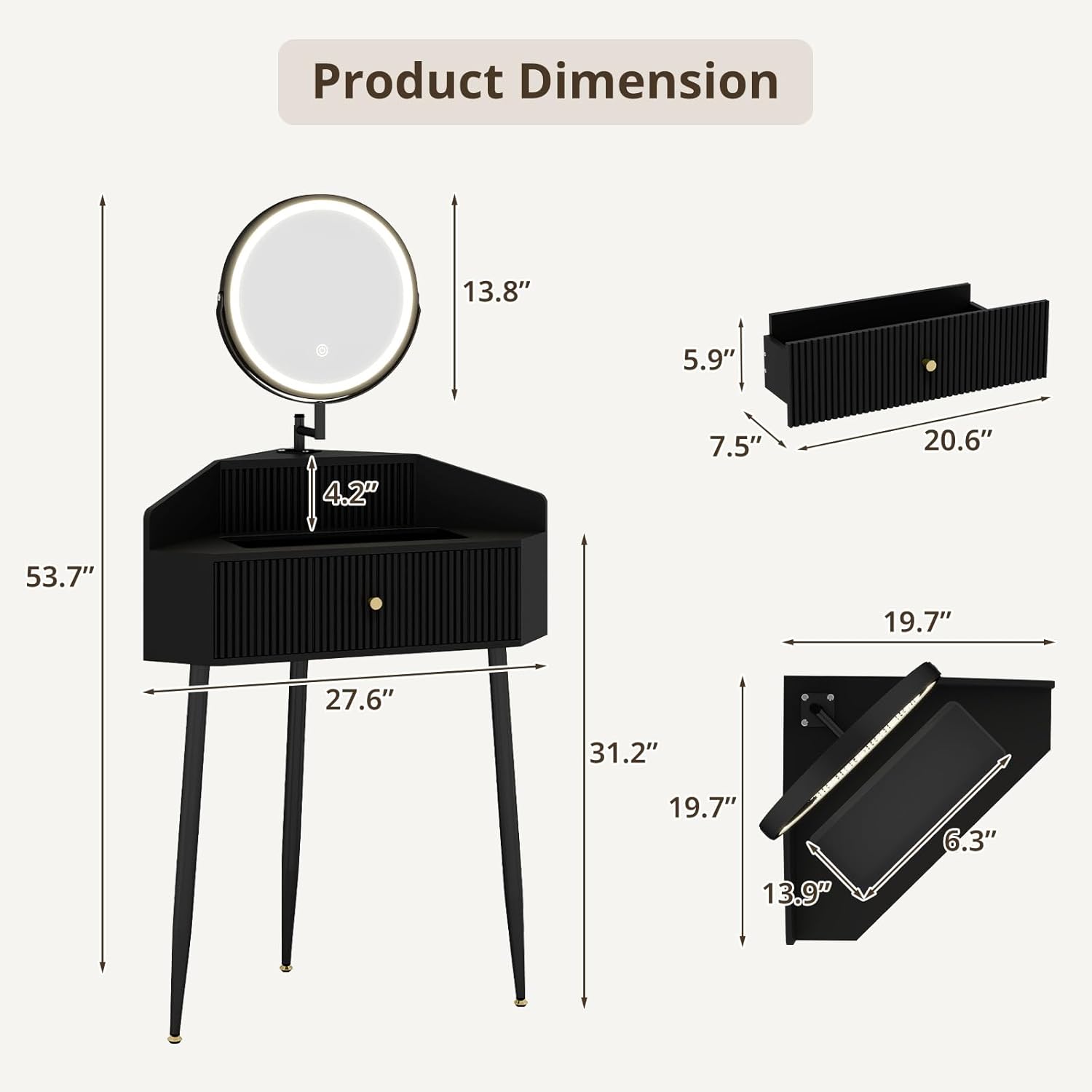

Image 9.1: Detailed diagram illustrating the dimensions of the ARTETHYS Corner Vanity Desk.

10. وارنٽي ۽ سپورٽ

For warranty information or customer support, please refer to the documentation included with your purchase or contact ARTETHYS customer service directly. Please have your model number (US-MVD8003-BK-C) and purchase date available when contacting support.

توهان عام طور تي ٺاهيندڙ جي رابطي جي معلومات ڳولي سگهو ٿا webسائيٽ تي يا پنهنجي پرچون ڪندڙ ذريعي.
