Pard USA IL1 LRF & IR Light Module Instruction Manual

تعارف

The Pard USA IL1 LRF & IR Light Module is an accessory designed to enhance the capabilities of the Night Stalker EX Digital Night Vision Scope. This compact module integrates both a laser rangefinder (LRF) and an infrared (IR) light source into a single unit.

The IL1 module extends detection range by measuring distances up to 1100 yards and provides infrared illumination up to 380 yards. It is intended for use in various low-light conditions to improve target acquisition and clarity when paired with a compatible Night Stalker EX device.

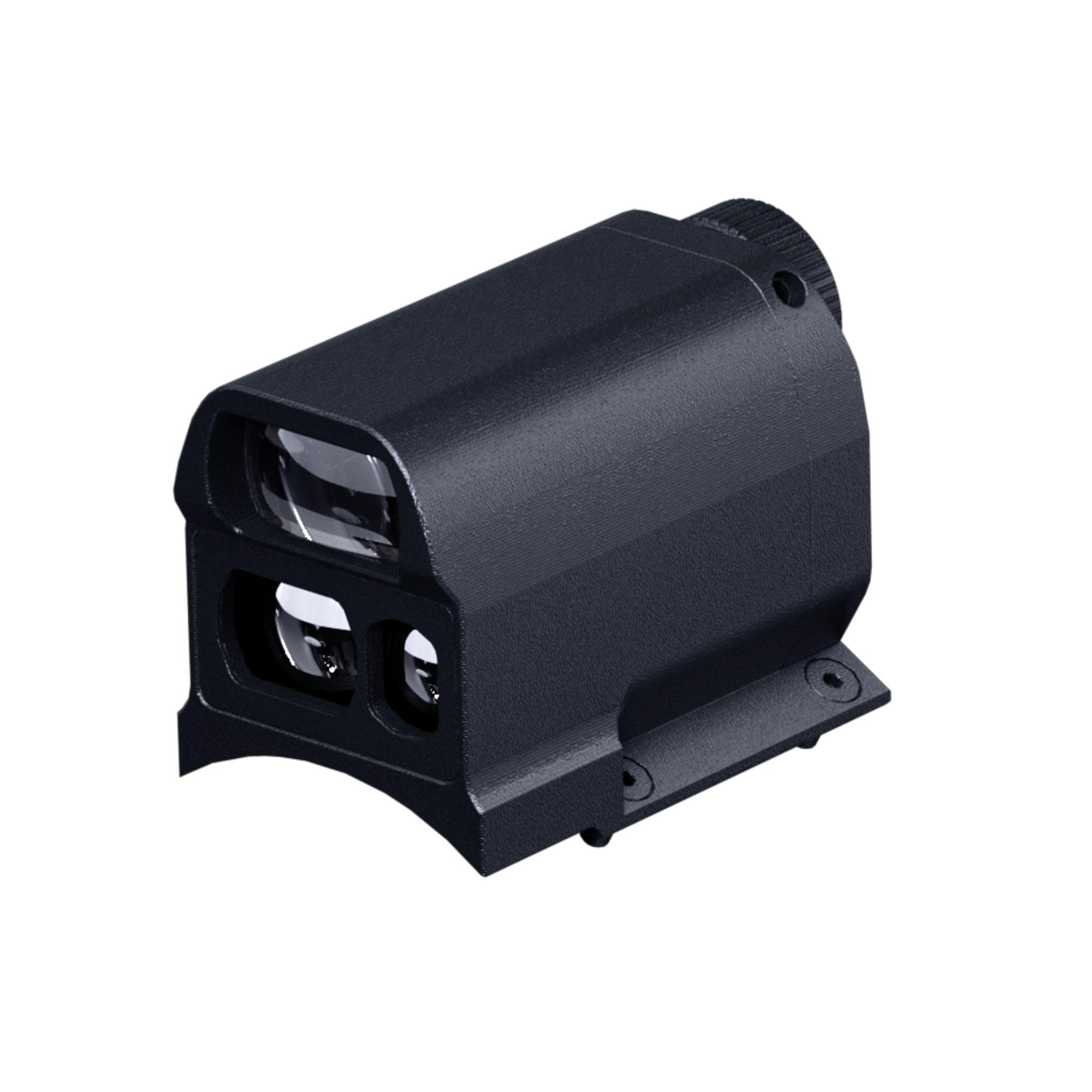

تصوير: پاسي view of the Pard USA IL1 LRF & IR Light Module, showcasing ان جي ڪمپيڪٽ ڊيزائن.

اهم خاصيتون

• ڊبل فنڪشن ڊيزائن: Combines a laser rangefinder (LRF) and an infrared (IR) light source into a single unit.
• Extended Rangefinding: Capable of measuring distances up to 1100 yards for precise targeting.
• Enhanced IR Illumination: Provides infrared light out to 380 yards to improve visibility in low-light environments.
• ڪمپيڪٽ ۽ هلڪو وزن: Designed for portability and minimal added bulk.
• بيحد مطابقت: Engineered for quick attachment and integration with Pard Night Stalker EX models.

سيٽ اپ ڪريو

پيڪيج مواد

The Pard USA IL1 LRF & IR Light Module package includes:

• IL1 LRF & IR Light Module

Attaching the Module

The IL1 module is designed for quick and secure attachment to compatible Pard Night Stalker EX Digital Night Vision Scopes.

1. Ensure the Night Stalker EX scope is powered off.
2. Locate the designated attachment point on your Night Stalker EX scope.
3. Align the IL1 module with the attachment point.
4. Secure the module using the provided fasteners or locking mechanism. Refer to your Night Stalker EX manual for specific attachment instructions if needed.
5. Verify the module is firmly attached and does not obstruct the scope's view يا ڪنٽرول.

تصوير: زاويه view of the IL1 module, showing potential mounting points.

تصوير: مٿي view of the IL1 module, highlighting its attachment interface.

آپريٽنگ هدايتون

پاور آن / آف

The IL1 module draws power from the connected Night Stalker EX scope. Ensure the scope is powered on for the module to function.

Using the Laser Rangefinder (LRF)

1. With the IL1 module attached and the Night Stalker EX scope powered on, activate the rangefinder function through the scope's interface. Consult your Night Stalker EX user manual for specific menu navigation.
2. Aim the scope at the target.
3. Initiate a range measurement. The measured distance will be displayed on the scope's screen.
4. The LRF has a detection range of up to 1100 yards.

Using the Infrared (IR) Light

1. Activate the IR illuminator function via the Night Stalker EX scope's controls.
2. Adjust the IR intensity or beam focus (if available through the scope's settings) to optimize illumination for your viewفاصلو.
3. The IR light provides illumination out to 380 yards, enhancing visibility in low-light conditions.

تصوير: سامهون view of the IL1 module, showing the rangefinder and IR emitter lenses.

سار سنڀال

صفائي

• Use a soft, lint-free cloth to clean the exterior of the module.
• For lenses, use a specialized optical cleaning cloth and lens cleaning solution. Avoid abrasive materials or harsh chemicals.
• Ensure no dust or debris enters the module's openings.

ذخيرو

• Store the IL1 module in a cool, dry place, away from direct sunlight and extreme temperatures.
• If storing for extended periods, ensure it is detached from the Night Stalker EX scope and protected from impacts.

مشڪلاتون

ماڊيول آن نه ٿي رهيو آهي

• Ensure the Night Stalker EX scope is powered on and functioning correctly.
• Verify the IL1 module is securely attached to the scope.
• Check the connection points for any obstructions or damage.

Inaccurate Rangefinder Readings

• Ensure the target is within the 1100-yard detection range.
• Confirm there are no obstructions between the module and the target.
• Clean the LRF lens if it appears dirty.

Poor IR Illumination

• Verify the IR illuminator is activated through the Night Stalker EX scope.
• Ensure the target is within the 380-yard IR illumination range.
• Clean the IR emitter lens if it appears dirty.
• Adjust IR intensity settings on the Night Stalker EX scope.

وضاحتون

وارنٽي ڄاڻ

The Pard USA IL1 LRF & IR Light Module is covered by a manufacturer's warranty. For specific details regarding warranty duration, coverage, and claims process, please refer to the warranty documentation included with your product or visit the official Pard USA website. The product listing mentions "Amazon" as the warranty description, which typically refers to Amazon's standard return policy. For manufacturer-specific warranty, consult Pard USA directly.
