VILTROX 85mm F2 EVO FE Lens Instruction Manual

تعارف

This manual provides detailed instructions for the proper use and maintenance of your VILTROX AF 85mm F2.0 EVO FE full-frame portrait lens. Designed for Sony E-Mount cameras, this lens features a wide F2.0 aperture, advanced optical elements, and enhanced autofocus capabilities. Please read this manual thoroughly before using the lens to ensure optimal performance and longevity.

دٻي ۾ ڇا آهي

• VILTROX AF 85mm F2.0 EVO FE Lens
• لينس پنچ
• فرنٽ لينس ڪيپ
• ريئر لينس ڪيپ
• لينس هيڊ

Figure 1: Included items with the VILTROX AF 85mm F2.0 EVO FE lens.

سيٽ اپ ڪريو

1. Attaching the Lens to Your Camera

1. پڪ ڪريو ته توهان جو ڪئميرا بند آهي.
2. Align the white index mark on the lens barrel with the corresponding white index mark on your Sony E-Mount camera body.
3. Gently insert the lens into the camera's lens mount.
4. Rotate the lens clockwise until it clicks into place, indicating it is securely locked.
5. سامهون واري لينس جي ڪيپ کي هٽايو.

Figure 2: The VILTROX AF 85mm F2.0 EVO FE lens attached to a Sony camera body.

2. لينس هوڊ کي ڳنڍڻ

• لينس جي هڊ کي لينس جي سامهون واري حصي سان ترتيب ڏيو.
• Twist the hood until it locks into position. The lens hood helps to prevent flare and protect the front element.

Figure 3: The lens with the lens hood installed.

3. انباڪسنگ ۽ ابتدائي معائنو

وڊيو 1: هڪ اوورview of the VILTROX AF 85mm F2.0 EVO FE lens, including unboxing and initial handling.

لينس هلائڻ

1. Focus Mode Switch (AF/MF)

The lens features a switch on the barrel to select between Autofocus (AF) and Manual Focus (MF) modes. Slide the switch to your desired mode.

• اي ايف (آٽو فوڪس): The camera will automatically focus on your subject. This mode is ideal for most shooting situations.
• ايم ايف (مينوئل فوڪس): Allows you to manually adjust the focus by rotating the focus ring on the lens. This is useful for precise focusing in specific scenarios or when autofocus struggles.

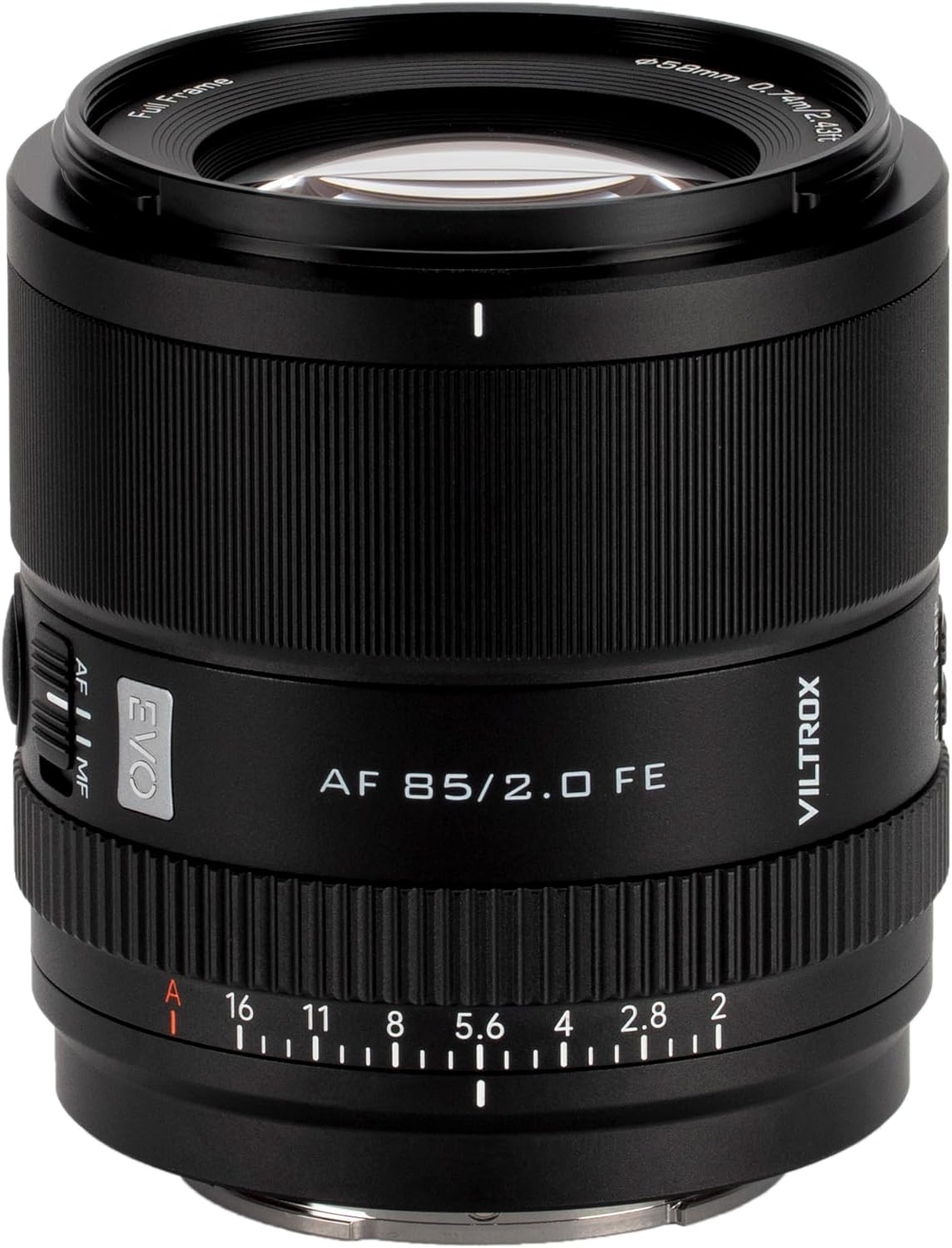

Figure 4: The AF/MF switch on the lens barrel.

2. Aperture Control

The lens features an aperture ring for direct control over the aperture setting. You can choose between F2.0 (wide open) to F16. The wider aperture (smaller f-number) allows more light and creates a shallower depth of field (more background blur), while a narrower aperture (larger f-number) allows less light and creates a deeper depth of field (more in focus).

Figure 5: The aperture ring on the VILTROX AF 85mm F2.0 EVO FE lens.

3. Demonstrating Aperture Effects (Daylight)

Video 2: This video demonstrates the effect of different aperture settings (F2.0 to F16) on depth of field and background blur in daylight conditions.

4. Demonstrating Aperture Effects (Night Scene)

Video 3: This video illustrates how varying aperture settings (F2.0 to F16) impact the appearance of night scenes, particularly bokeh and light rendition.

سار سنڀال

1. لينس صاف ڪرڻ

• Use a soft, lint-free cloth or a lens brush to remove dust from the lens surfaces.
• For smudges or fingerprints, apply a small amount of lens cleaning solution to a microfiber cloth and gently wipe the lens in a circular motion.
• Avoid touching the glass elements directly with your fingers.

2. اسٽوريج

• Always attach both front and rear lens caps when the lens is not in use.
• لينس کي ٿڌي، سڪل جاءِ تي، سڌي سج جي روشني ۽ انتهائي گرمي پد کان پري رکو.
• جيڪڏهن گهڻي وقت تائين ذخيرو ڪري رهيا آهيو، ته پوءِ ڦڦڙن جي واڌ کي روڪڻ لاءِ ڊيهوميڊائيفائنگ ڪيبينيٽ يا سليڪا جيل پيڪٽ استعمال ڪرڻ تي غور ڪريو.

مشڪلاتون

1. Autofocus Issues in Low Light

In very low light conditions, the autofocus system may struggle to acquire focus. This is a common characteristic of many lenses and camera systems.

• حل: Switch to Manual Focus (MF) mode and adjust focus manually.
• حل: Use an external light source to illuminate your subject, aiding the autofocus system.
• حل: Ensure your camera's firmware and the lens's firmware (if applicable) are up to date, as updates can sometimes improve autofocus performance.

2. Vignetting at Wide Apertures

Some vignetting (darkening of the image corners) may be noticeable at wider apertures (e.g., F2.0 to F4). This can be a creative effect for portraits but can also be corrected.

• حل: Stop down the aperture to a narrower setting (e.g., F5.6 or higher) to reduce vignetting.
• حل: Vignetting can often be corrected in post-processing software using lens profiles or manual adjustments.

وضاحتون

لينس جي تعمير جو خاڪو

شڪل 6: ڌماڪو ٿيو view of the lens optical elements.

Modulation Transfer Function (MTF) Chart

Figure 7: MTF chart illustrating lens performance.

وارنٽي ۽ سپورٽ

For warranty information, technical support, or service inquiries, please refer to the warranty card included in your product packaging or visit the official VILTROX webسائيٽ. وارنٽي دعوائن لاءِ خريداري جو ثبوت رکو.
