1. تعارف
Thank you for choosing the AIYAPLAY 6V Children's Electric Bumper Car. This manual provides important information for the safe assembly, operation, and maintenance of your new electric ride-on toy. Please read this manual thoroughly before use and retain it for future reference.
2. حفاظت جي ڄاڻ
خبردار: هڪ بالغ جي سڌي نگراني هيٺ استعمال ڪيو وڃي.
- Always ensure the child is supervised by an adult during operation.
- Do not operate the vehicle near stairs, hills, roads, or swimming pools.
- پڪ ڪريو ته ٻار گاڏي هلائڻ وقت مناسب حفاظتي سامان، جهڙوڪ هيلمٽ، پائي.
- Only use the charger and battery provided by the manufacturer.
- 30 kg (66 lbs) جي وڌ ۾ وڌ لوڊ گنجائش کان وڌيڪ نه ڪريو.
- Recommended age for use is 3-8 years.
- هٿن، وارن ۽ ڪپڙن کي حرڪت ڪندڙ حصن کان پري رکو.
- Do not modify the electrical system or components of the vehicle.

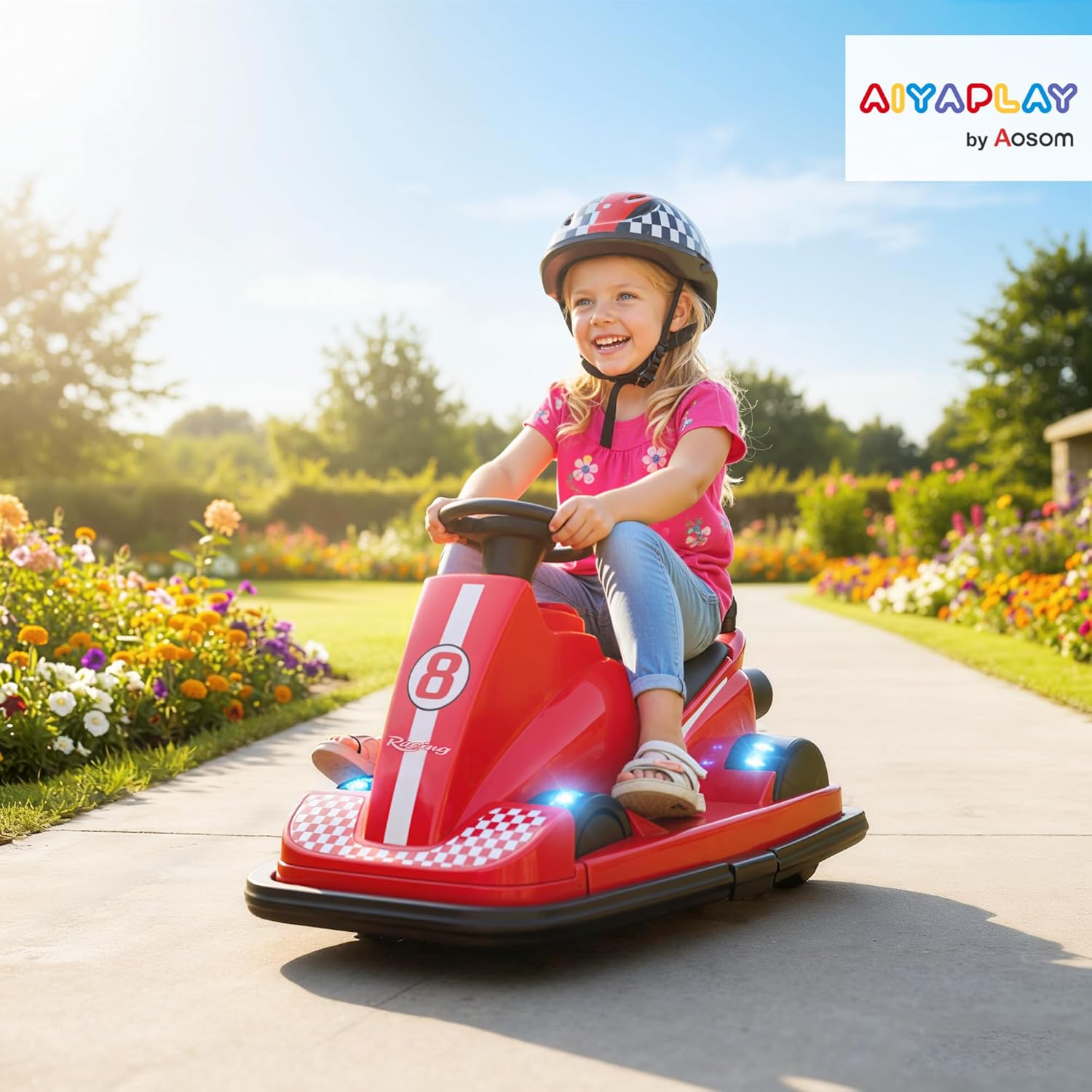

Image: A child safely operating the electric bumper car under bright conditions.
3. پيڪيج مواد
Please check the package carefully to ensure all parts are present and undamaged. If any parts are missing or damaged, contact customer support.
- Electric Bumper Car Body
- اسٽيئرنگ ويل
- سيٽ
- Wheels (front and rear)
- 6V Battery (pre-installed or separate)
- بيٽري چارجر
- اسيمبلي هارڊويئر (اسڪرو، واشر، وغيره)
- ھدايت وارو دستور
4. اسيمبليءَ جون هدايتون
Assembly is required before first use. Follow these steps carefully:
- ڦيٿا ڳنڍيو: Securely attach the wheels to the axles using the provided hardware. Ensure they rotate freely.
- اسٽيئرنگ ويل کي انسٽال ڪريو: Connect the steering column to the main body and attach the steering wheel. Ensure all electrical connections for horn and music are properly seated.
- Mount the Seat: Place the seat onto the designated area and secure it with screws if required.
- بيٽري سان ڳنڍيو: If the battery is not pre-installed, connect it according to the polarity markings. Ensure all connections are firm.
- Perform Initial Charge: Before first use, fully charge the battery for the recommended duration (refer to charging section).
Image: Various angles of the electric bumper car, illustrating its design for assembly reference.
5. بيٽري کي چارج ڪرڻ
The vehicle is powered by a 6V rechargeable battery. Proper charging ensures optimal performance and battery life.
- گاڏي تي چارجنگ پورٽ ڳوليو.
- چارجر کي معياري وال آئوٽليٽ ۾ لڳايو.
- Connect the charger's plug to the vehicle's charging port.
- چارجر تي چارجنگ انڊيڪيٽر عام طور تي چارجنگ دوران ڳاڙهو ڏيکاريندو ۽ مڪمل چارج ٿيڻ تي سائو ٿي ويندو.
- Initial charge time is approximately 8-12 hours. Subsequent charges should be 8-10 hours. Do not overcharge.
- چارج مڪمل ٿيڻ کان پوءِ چارجر کي ڌار ڪريو.
6. آپريٽنگ هدايتون
Familiarize yourself with the controls before allowing a child to operate the bumper car.
- پاور آن: Locate the power switch (usually near the seat or dashboard) and turn it to the "ON" position.
- ھلائڻ: Use the steering wheel to control the direction of the car. The dual motor system allows for 360° rotation.
- تيزي: Press the foot pedal (if present) or use the designated control for forward movement. The soft-start feature ensures gentle acceleration.
- Horn and Music: Press the buttons on the steering wheel to activate the horn or play built-in music.
- روڪڻ: Release the acceleration pedal or switch to the "OFF" position to stop the vehicle.
Image: The bumper car demonstrating its 360-degree rotation feature.
Image: Diagram explaining the soft-start feature for smooth acceleration.
7. خاصيتون
- 360 ° گردش: Equipped with two motors for full 360-degree spins, enhancing the driving experience.
- Realistic Steering Wheel: Features a functional steering wheel with integrated horn and music buttons.
- Protective Bumper: A full, soft bumper surrounds the car to protect both the child and furniture during play.
- Soft-Start System: Ensures gentle acceleration for a comfortable and safe ride.
- LED Lights and Music: Four bright LED lights and built-in music create an engaging atmosphere.
Image: The protective bumper in action, showing its ability to absorb impacts.
Image: Illustrating the integrated music and blinking LED lights features.
8. سار سنڀال
- صفائي: گاڏيءَ کي نرميءَ سان مسح ڪريو، ڊيamp ڪپڙو. استعمال نه ڪريو abrasive cleaners يا solvents.
- بيٽري جي سنڀال:
- هر استعمال کان پوء بيٽري کي مڪمل طور تي چارج ڪريو.
- If storing for extended periods, charge the battery every 30 days to prevent deep discharge.
- بيٽري کي انتهائي گرمي پد ۾ نه رکو.
- اسٽوريج: Store the vehicle in a dry, cool place away from direct sunlight when not in use.
- چڪاس: Regularly check for loose screws, damaged wires, or worn parts. Replace any damaged components immediately.
9. مسئلا حل ڪرڻ
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| گاڏي حرڪت نٿي ڪري. | بيٽري گهٽ يا ختم آهي. پاور سوئچ بند آهي. بيٽري جو ڪنيڪشن ختم. | بيٽري کي چارج ڪريو. پاور سوئچ کي "آن" ڪريو. Check battery terminals and connections. |
| گاڏي آهستي هلي ٿي. | بيٽري گهٽ آهي. اوور لوڊ ٿيل گاڏي. Operating on uneven or soft surfaces. | بيٽري کي ري چارج ڪريو. Reduce load (ensure child is within weight limit). فليٽ، سخت سطحن تي ڪم ڪريو. |
| Lights or music not working. | لوز تار ڪنيڪشن. بيٽري گھٽ. | Check connections to lights/speakers. بيٽري کي چارج ڪريو. |
10. وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل نمبر | 370-417V90RD |
| مجموعي طول و عرض | 74 L x 53 W x 48 H cm (29.13 x 20.87 x 18.9 inches) |
| سيٽ جي ماپ | 30 L x 25 W cm |
| سيٽ جي اوچائي | 32 سينٽي |
| بيٽري | 6 V 4.5 هه |
| موٽرس | 2 x 6 V |
| رفتار جي حد | 3-8 ڪلوميٽر / ايڇ |
| سفارش ٿيل عمر | 3-8 سال |
| وڌ ۾ وڌ لوڊ | 30 ڪلوگرام (66 پائونڊ) |
| پيداوار جو وزن | 14.3 پائونڊ |
Image: Visual representation of the bumper car's dimensions and specifications.
11. وارنٽي ۽ سپورٽ
For warranty information or technical support, please contact AIYAPLAY customer service. Refer to your purchase documentation for specific warranty terms and contact details.
ٺاهيندڙ: ايم ايڇ هينڊل آتم
