تعارف
This user manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your Dimplex 42 Inch Slim Built-in Linear Electric Fireplace Heater. This unit features a shallow 4-inch depth, Multi-Fire Color Technology, and includes a remote control and acrylic crystal ember bed. It is designed for flush mounting in most home frames, offering a modern and elegant heating solution. Please read this manual thoroughly before installation and use, and retain it for future reference.
اهم حفاظتي ڄاڻ
Always adhere to basic safety precautions to reduce the risk of fire, electric shock, and injury to persons.
- ھن چمني کي استعمال ڪرڻ کان پھريائين س instructionsئي هدايتون پڙھو.
- Do not operate any fireplace with a damaged cord or plug, or if the heater has been dropped or damaged in any manner.
- ٻاهر استعمال نه ڪريو.
- هي چمني گرم آهي جڏهن استعمال ۾. جلن کان بچڻ لاء، ننگي چمڙي کي گرم سطحن کي ڇڪڻ نه ڏيو.
- آتش گير مواد، جهڙوڪ فرنيچر، تکيا، پلنگ، ڪاغذ، ڪپڙا ۽ پردا چمني جي اڳيان کان گهٽ ۾ گهٽ 3 فوٽ (0.9 ميٽر) جي فاصلي تي رکو.
- انتهائي احتياط ضروري آهي جڏهن ڪو هيٽر استعمال ڪيو وڃي يا ان جي ويجهو ٻارن يا غلط استعمال ڪيو وڃي ۽ جڏهن به باهه جي جاءِ کي ڪم ڪري ڇڏي وڃي ۽ ان جو استعمال نه ڪيو وڃي.
- هميشه چمڙي کي انپلگ ڪريو جڏھن استعمال ۾ نه ھجي.
- ڪنهن به وينٽيليشن يا ايگزاسٽ اوپننگ ۾ غير ملڪي شين کي داخل نه ڪريو يا داخل ٿيڻ نه ڏيو ڇو ته اهو بجلي جو جھٽڪو يا باهه جو سبب بڻجي سگهي ٿو، يا چمني کي نقصان پهچائي سگهي ٿو.
- ممڪن باهه کي روڪڻ لاءِ، ڪنهن به طريقي سان هوا جي داخل ٿيڻ يا خارج ٿيڻ کي نه روڪيو. نرم سطحن تي استعمال نه ڪريو، بستر وانگر، جتي کولڻ بند ٿي سگهي ٿي.
- ھن پراڊڪٽ ۾ ڪيميڪل شامل آھن جيڪي ڪيليفورنيا جي رياست کي سڃاتل آھن جيڪي ڪينسر ۽ پيدائشي نقص يا ٻي پيدائشي نقصان جو سبب بڻجن ٿا.
پيڪيج مواد
Upon unpacking, please ensure all items listed below are present and undamaged.
- Dimplex 42 Inch Slim Built-in Linear Electric Fireplace Heater Unit
- Acrylic Crystals (Ember Bed Media)
- ريموٽ ڪنٽرول (2 AAA بيٽريون شامل آهن)
- وڌندڙ خط
- استعمال ڪندڙ دستي
سيٽ اپ ۽ تنصيب
The Dimplex Slim Electric Fireplace is designed for versatile installation, either flush into 2-inch x 4-inch framing or using the included wall mount installation bracket for quick and easy setup. Ensure the chosen location is suitable for electrical connections and provides adequate clearance for heat dissipation.
شڪل 1: سامهون view of the Dimplex 42 Inch Slim Built-in Linear Electric Fireplace.
Figure 2: Detailed dimensions for the Dimplex 42 Inch Slim Linear Electric Fireplace, showing a depth of 3-7/8 inches (9.8 cm).

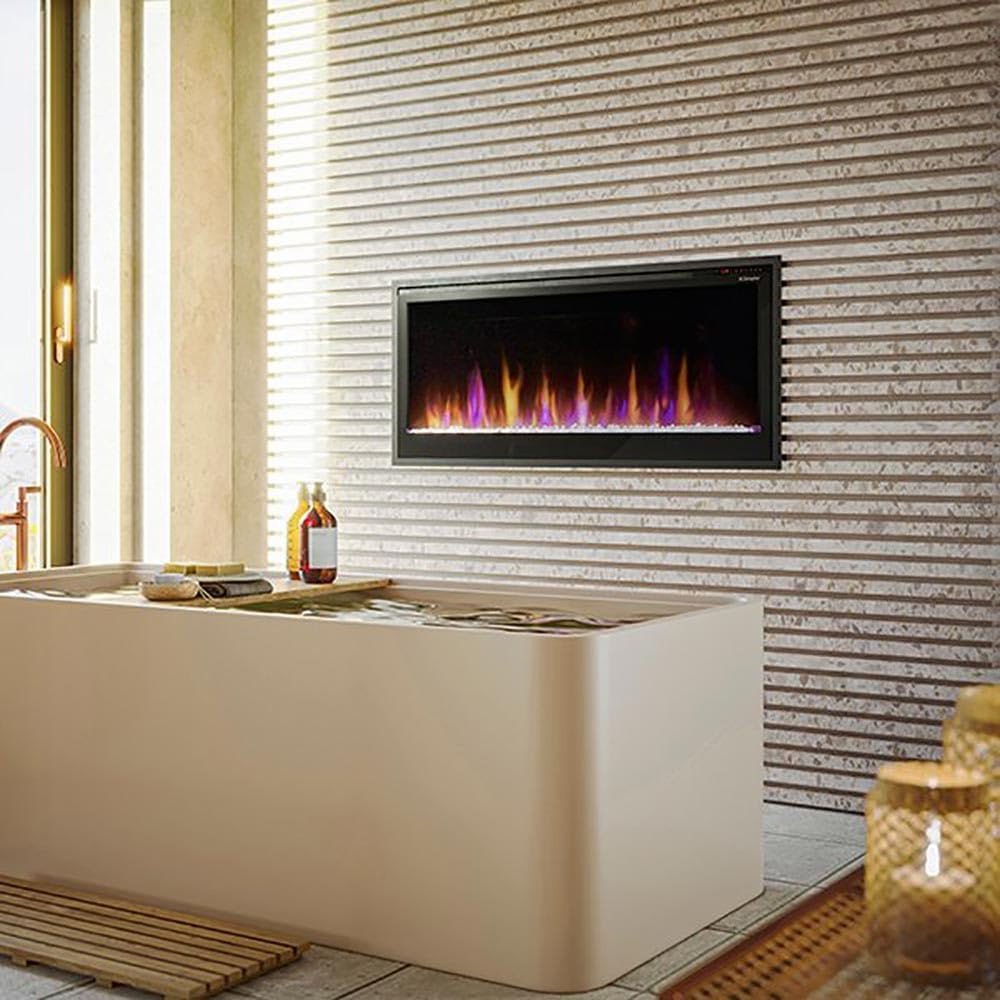

شڪل 3: مثالample installation of the Dimplex 42 Inch Slim Linear Electric Fireplace in a contemporary living space.

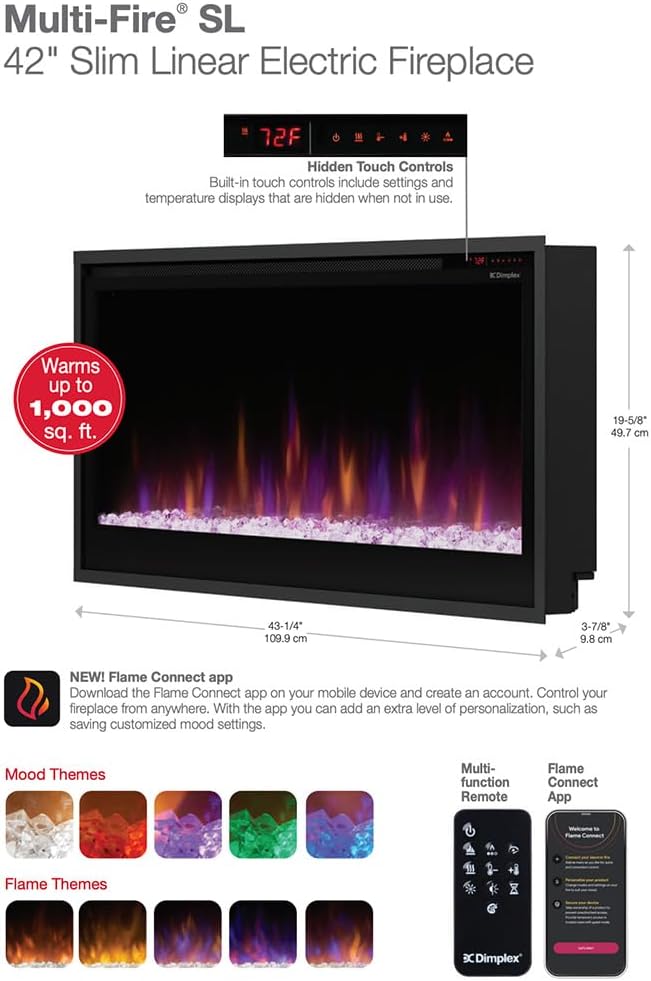

Figure 4: Visual guide to the Multi-Fire SL features, including hidden touch controls, mood themes, flame themes, multi-function remote, and Flame Connect app.
Figure 5: Additional dimensional view of the fireplace, highlighting its slim profile ۽ مجموعي سائيز.
برقي ڪنيڪشن:
The unit can be hardwired or used with an optional 120V plug-in cord kit. Consult a qualified electrician for hardwiring installations to ensure compliance with local electrical codes.
آپريٽنگ هدايتون
Your Dimplex electric fireplace offers various settings to customize your experience.
ريموٽ ڪنٽرول افعال:
The included remote control allows you to adjust settings from the comfort of your couch.
- پاور آن / آف: يونٽ کي چالو يا غير فعال ڪري ٿو.
- Flame Color Adjustment: Cycle through various flame colors (Yellow, Orange, Blue, Mixed) to match your mood.
- Flame Speed Control: Adjust the speed of the flame effect.
- گرمي سيٽنگون: Control the supplemental heat output for up to 400 sq ft. The unit can be operated with or without heat.
- فين جي رفتار: Adjust the fan speed for optimal air circulation.
- تعمير ٿيل ٽائمر: Set the timer for automatic shut-off, up to 8 hours.
- امبر بستري جو رنگ: Adjust the color of the acrylic crystals with a touch of a button.
Multi-Fire SL Technology:
Dimplex's Multi-Fire SL Technology creates a multi-layered flame appearance for a sense of depth and realism. The ambient light sensor automatically adjusts firebox light to suit the room day to night.
سار سنڀال
باقاعده سار سنڀال توهان جي برقي چمني جي ڊگهي عمر ۽ بهترين ڪارڪردگي کي يقيني بڻائي ٿي.
- صفائي: Ensure the unit is unplugged and cool before cleaning. Use a soft, damp cloth to wipe surfaces. Do not use abrasive cleaners.
- Air Intakes/Exhaust: Periodically check and clear any dust or debris from the air intake and exhaust vents to maintain proper airflow and prevent overheating.
- Ember Bed: The acrylic crystals can be carefully removed and cleaned with a soft cloth if necessary.
مشڪلاتون
جيڪڏهن توهان کي پنهنجي باهه جي جاءِ سان مسئلا درپيش اچن ٿا، ته هيٺ ڏنل عام مسئلن ۽ حلن جو حوالو ڏيو.
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| يونٽ کي طاقت ناهي. | Unit unplugged, circuit breaker tripped, or power outlet issue. | Ensure the unit is securely plugged in. Check your home's circuit breaker and reset if necessary. Test the outlet with another appliance. |
| شعلا نظر نه ٿا اچن يا مدھم نه آهن. | Flame effect is turned off, or light intensity is set too low. | Use the remote control or hidden touch controls to turn on the flame effect and adjust the brightness. |
| ڪابه گرمي جي پيداوار نه آهي. | Heater function is off, or thermostat setting is too low. | Activate the heater function via the remote or controls. Increase the thermostat setting. Ensure vents are not blocked. |
| آپريشن دوران غير معمولي شور. | Minor fan noise is normal. Obstruction in fan or motor. | Ensure no foreign objects are near the fan. If noise persists or is excessive, contact customer support. |
وضاحتون
| خاصيت | تفصيل |
|---|---|
| برانڊ | ڊمپليڪس |
| ماڊل نالو | PLF4214-XS |
| طاقت جو ذريعو | بجلي |
| پيداوار جي ماپ | 3.75"ڊي x 42"ڊي x 19.5"ايڇ |
| مواد | ڌاتو |
| ختم ڪرڻ جو قسم | ڪارو |
| انسٽاليشن جو قسم | Built In, Wall Mount |
| گرمي جي پيداوار | 4200 برطانوي حرارتي يونٽ |
| خاص خصوصيت | 1002 sq ft Heat, Slim Thin Design, LED Multi-Color Flames, Corded, Built-In Timer |
| گرمائش جو احاطو | 400 اسڪوائر فوٽ |
| شامل اجزاء | Acrylic Crystals, Remote Control, Mounting Bracket |
| شيءِ جو وزن | 64.8 پائونڊ |
| يو پي سي | 781052137301 |
| بيٽرين جي ضرورت آهي | 2 AAA بيٽريون (ريموٽ لاءِ شامل آهن) |
وارنٽي ڄاڻ
This Dimplex Electric Fireplace comes with a Limited Warranty. For specific details regarding coverage, duration, and terms, please refer to the warranty card included in your product packaging or visit the official Dimplex webسائيٽ.
ڪسٽمر سپورٽ
For any questions, technical assistance, or warranty claims, please contact Dimplex Customer Support.
- آن لائن سپورٽ: Visit the official Dimplex webسوالن ۽ سپورٽ وسيلن لاءِ سائيٽ.
- فون سپورٽ: Refer to your product packaging or the Dimplex webرابطي جي نمبرن لاءِ سائيٽ.
- واپسي: هي پراڊڪٽ 30 ڏينهن جي آسان واپسي لاءِ اهل آهي.
